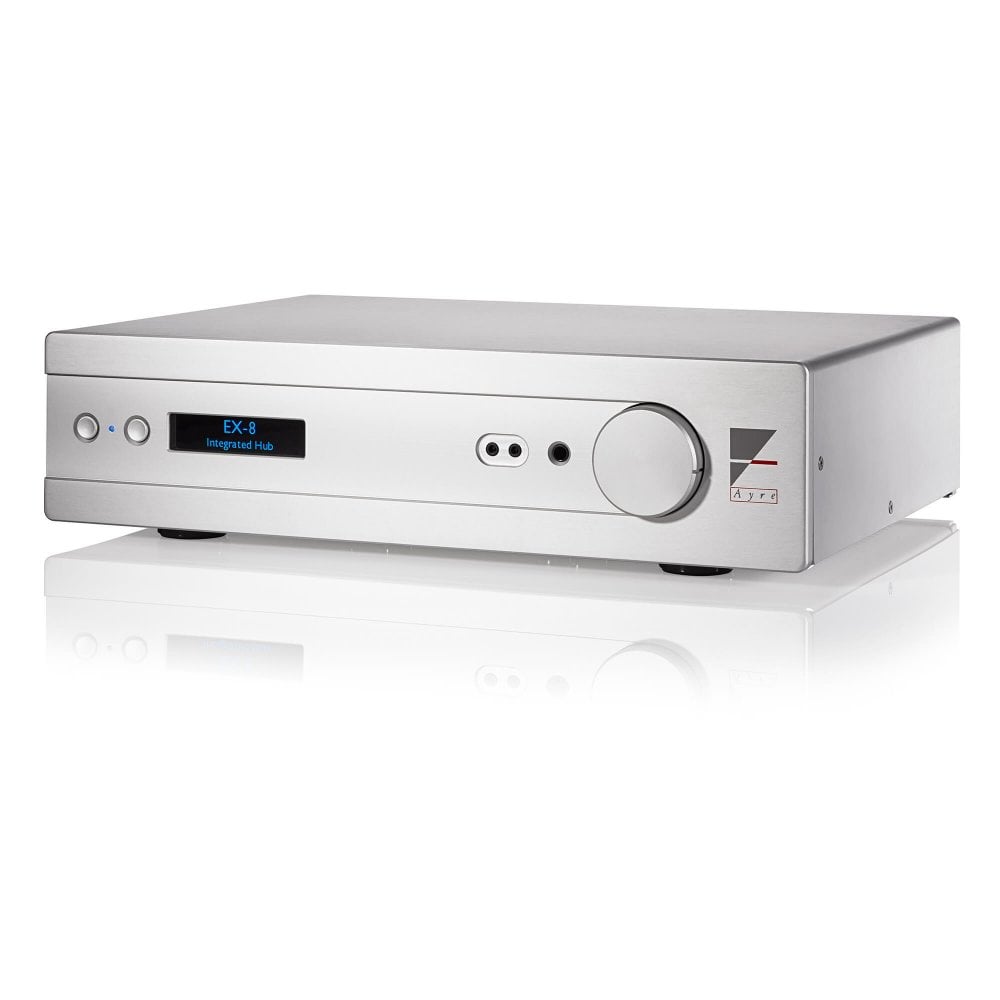

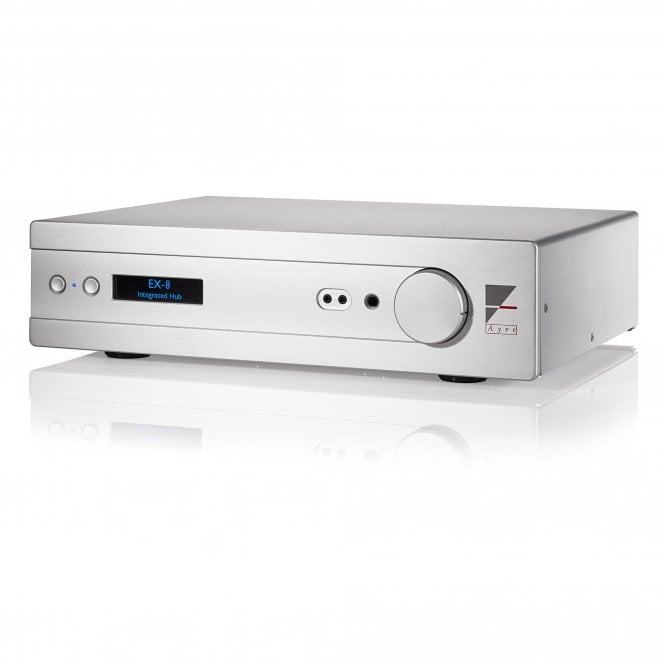

Ayre EX-8 2.0 System

Built around Ayre’s exclusive innovations, the Ayre EX-8 includes fully-balanced, zero-feedback (real-time) circuitry throughout for natural musicality.

The EX-8’s modularity makes it amazingly versatile. Featuring three analog inputs (one balanced) and up to six digital inputs (Ethernet, USB, AES/EBU, S/PDIF, and two Toslink) it’s prepared to be the hub for most any system. With the Ethernet module installed, it is Room-ready and pre-configured to stream Spotify, Qobuz, and Tidal. The EX-8 will integrate into virtually any home system today and is designed to be upgradeable for inevitable future technologies.

The EX-8 also allows you to immerse yourself in music with your favorite headphones. Taking full advantage of the robust Ayre analog linear power supply, both balanced and unbalanced front panel connectors–driven by Ayre’s exclusive Diamond amplifier circuit–will effortlessly drive the most demanding headphones. Likewise, selecting speakers to go with the EX-8 is easy. The Double-Diamond output stage and pure linear power supplies produce 100 watts of power, allowing music to flow effortlessly into your life. The EX-8 delivers Ayre’s latest innovations in a single chassis, giving you authentic music, at an unexpected price.

Key Features:

• Zero-feedback
• Fully-balanced discrete circuitry
• Ayre’s Asynchronous S/PDIF input.
• ESS ES9038Q2M DAC chip
• Ayre custom digital clock
• Ayre’s Minimum Phase digital filter
• Single-pass 16x oversampling
• Ayre’s Double Diamond output stage
• Ayre’s exclusive Equilock gain stage
• Analog volume control
• Linear analog power supply
• High-speed circuit board material
• Up to six digital inputs:
• Ethernet, Asynchronous USB,
• AES/EBU, S/PDIF, Optical (2)
• AyreLink communication system

Technical Specifications:

• Audio Inputs: USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / PCM 16, 20, 24 bits / DSD64 and DSD128 (as DoP)
• Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz / PCM 16, 20, 24 bits / DSD64 (as DoP)
• Network: 44.1, 48, 88.2, 96, 176.4, 192 kHz / PCM 16, 20, 24 bits / DSD64 (as DoP)
• Analog: 1 Balanced XLR, 2 Single-ended RCA
• Speaker Output: 100 watts per channel continuous into 8 ohms
• Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended
• Headphone Output: 4.0 Vrms balanced, 2.0 Vrms single-ended
• XLR Input Polarity: Pin 1 = Ground / Pin 2 = Non-inverting (Positive) / Pin 3 = Inverting (Negative)
• Power Consumption: 60 watts in operating mode
• Dimensions: 17.25″ W x 13.00″ D x 3.75″ H (44cm x 33cm x 10cm)
• Weight: 24lbs (11 kg)
