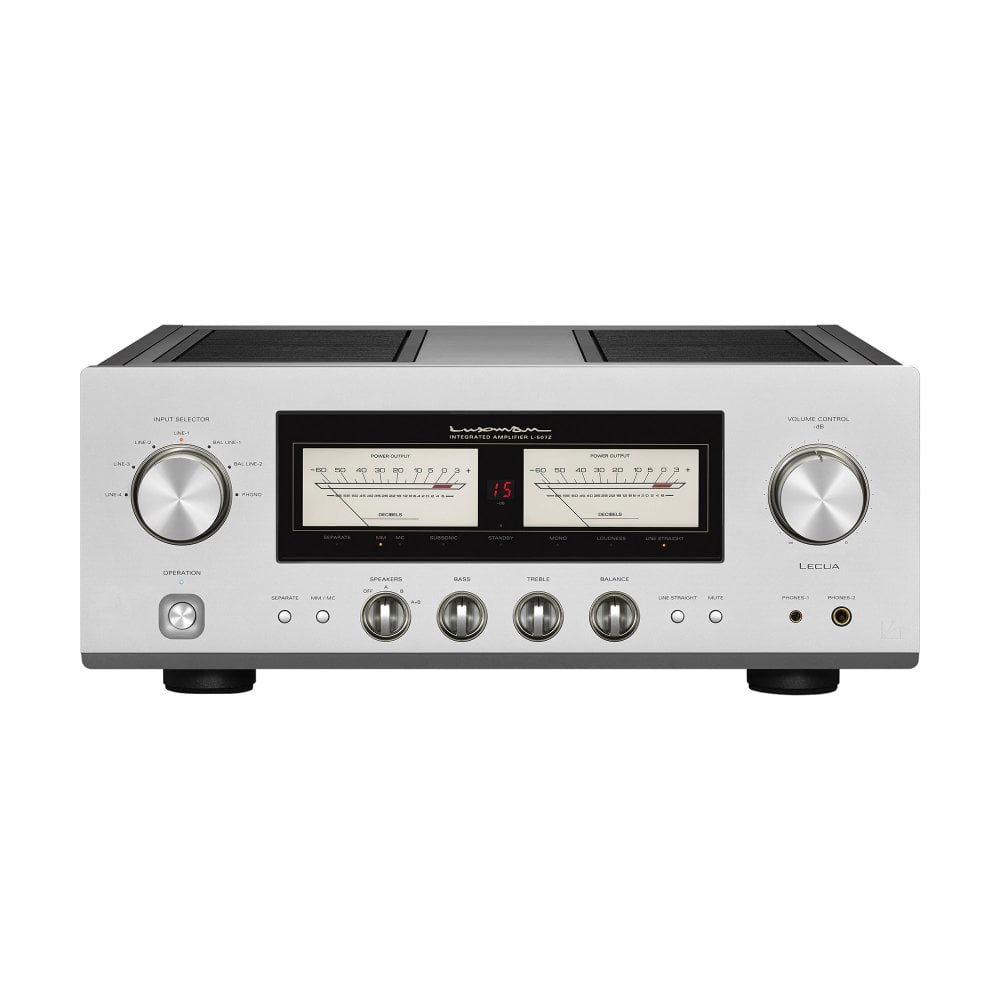

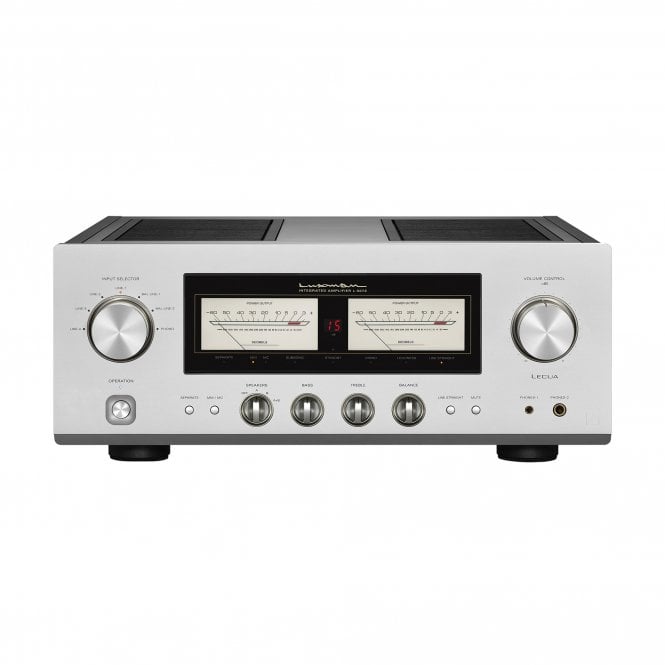

Luxman L-507Z Integrated Amplifier

Luxman will celebrate their 100th anniversary in 2025 and are proud to announce the successor to their ODNF* feedback circuitry, which has contributed to the audio quality of their amplifier products since 1999. They have developed a new amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich musicality and overwhelming audio performance. LIFES is based on the technical concept of their epoch-making ODNF circuit and realizes excellent, dynamic characteristics without feeding back any of the original audio input signal to the main amplifier, achieving a remarkably natural sound quality, almost if it were a non-feedback equipped circuit. The design has been conceived and expanded upon from first principles using simulation technology and painstaking research. By repeatedly auditioning, rigorously scrutinizing and combining specially selected components, Luxman have achieved supreme performance characteristics and a level of quality suitable for use in Luxman’s next-generation products. In producing LIFES Version 1.0, by carefully reimagining the entire circuit, they succeeded in reducing the number of paralleled elements while improving performance. The distortion in the amplification stage has been reduced to less than half of their previous system. The output stage features a 3-stage Darlington triple-paralleled push-pull configuration and achieves a class AB power output of 110W+110W (8Ω) and 210W+210W (4Ω). The high output power, comparable to that of a separate power amplifier, effortlessly realizes a natural soundstage, full of energy, to confidently drive any compatible speaker system, and bring out the best of its characteristics.

*ODNF stands for “Only Distortion Negative Feedback”.

*LIFES stands for “Luxman Integrated Feedback Engine System”.

Technical Specifications:

• Rated output: 110W+110W（8Ω） / 220W+220W（4Ω）
• Input sensitivity/ input impedance: PHONO（MM）: 2.5mV / 47kΩ / PHONO（MC ）： 0.3mV / 100Ω / LINE: 180mV / 47kΩ / BAL.LINE: 180mV / 79kΩ / MAIN IN: 1.05V / 47kΩ
• Output voltage: PRE OUT: 1V
• Frequency response: PHONO: 20Hz to 20kHz (±0.5dB) / LINE: 20Hz to 100kHz (within -3dB)
• Total harmonic distortion: 0.007% or less (8Ω, 1kHz) / 0.03% or less (8Ω, 20Hz to 20kHz)
• S/N ratio (IHF-A): PHONO (MM): 91dB or more / PHONO (MC): 75dB or more / LINE: 105dB or more
• Volume adjustment: New LECUA1000
• Amplification feedback circuit: LIFES 1.0
• Output configuration: Bipolar 3-parallel push-pull
• Damping factor: 300
• Max. amount of tone control: BASS: ±8dB at 100Hz / TREBLE: ±8dB at 10kHz
• Power supply: 230V~(50Hz) / 115V~(60Hz)
• Power consumption: 350W / 886W (under no signal), 0.4W (at standby)
• External dimensions: 440(W) x 178(H) x 454(D) mm / front side knob of 20mm and rear side terminal of 27mm included in depth
• Net weight: 25.4kg (main unit)
• Accessories: Remote control (RA-17A) / Power cable
• Speaker terminal Supported Y-lug terminal dimension: Width of part a: 15mm or less / Width of part b: 8mm or more / * Connection may not be performed depending on the shape of the Y-lug terminal.
