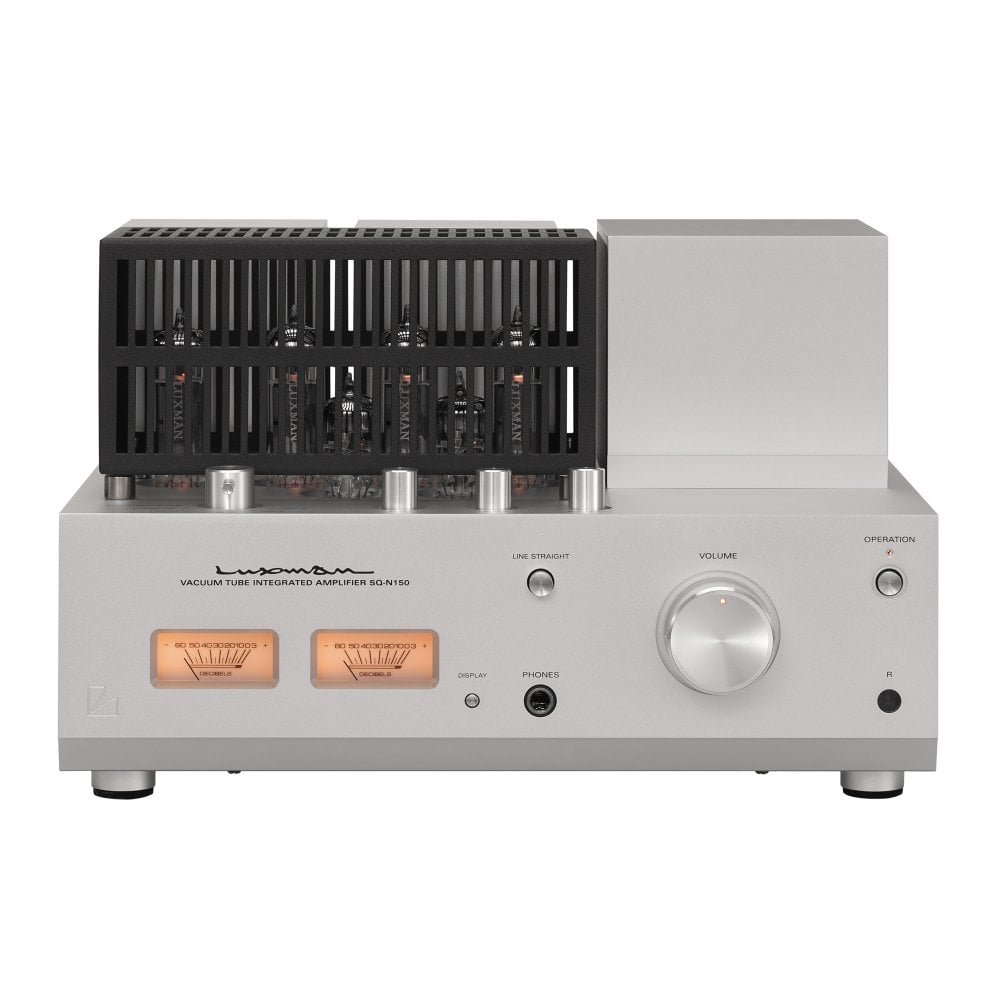

Luxman SQ-N150 Integrated Amplifier

You’ll enjoy surpassingly detailed, open music reproduction thanks to the exceptional linearity of LUXMAN’s P-K split phase inversion circuit. Luxman married an input stage of two JJ Electronic ECC83 miniature double triodes to a push-pull output with four JJ Electronic EL84 pentodes. And with their deep knowledge of tube design, they configured the SQ-N150 for consistent performance and long operating life. On paper, they rate power output at 10 Watts + 10 Watts at 6 ohms. In practice, the sound is fit for the most demanding listeners.

Technical Specifications:

• Rated output: 10W+10W(6Ω)
• Input sensitivity/input impedance: PHONO (MM): 3.0mV/47kΩ / PHONO (MC): 0.33mV/100Ω / LINE: 180mV/47kΩ
• Frequency response: PHONO: 20Hz to 20kHz (±0.5dB) / LINE: 20Hz to 80kHz (within -3.0dB)
• Total harmonic distortion: 1% or less (1kHz, 10W/6Ω)
• S/N ratio (IHF-A): PHONO (MM): 84dB or more / PHONO (MC): 64dB or more / LINE: 95dB or more
• Circuit: Driver: P-K split phase inversion circuit / Output: Pentode power tubes
• Vacuum tubes: ECC83×2, EL84×4
• Power supply: 230V~(50Hz) / 115V~(60Hz)
• Power consumption: 98W
• External dimensions: 297(W) x 188(H) x 251(D) mm / 20mm front panel knob of and 21mm rear panel / terminals are included in the depth measurement
• Net weight: 12.4kg (main unit)
• Accessories: Remote control (RA-25), Power cable
