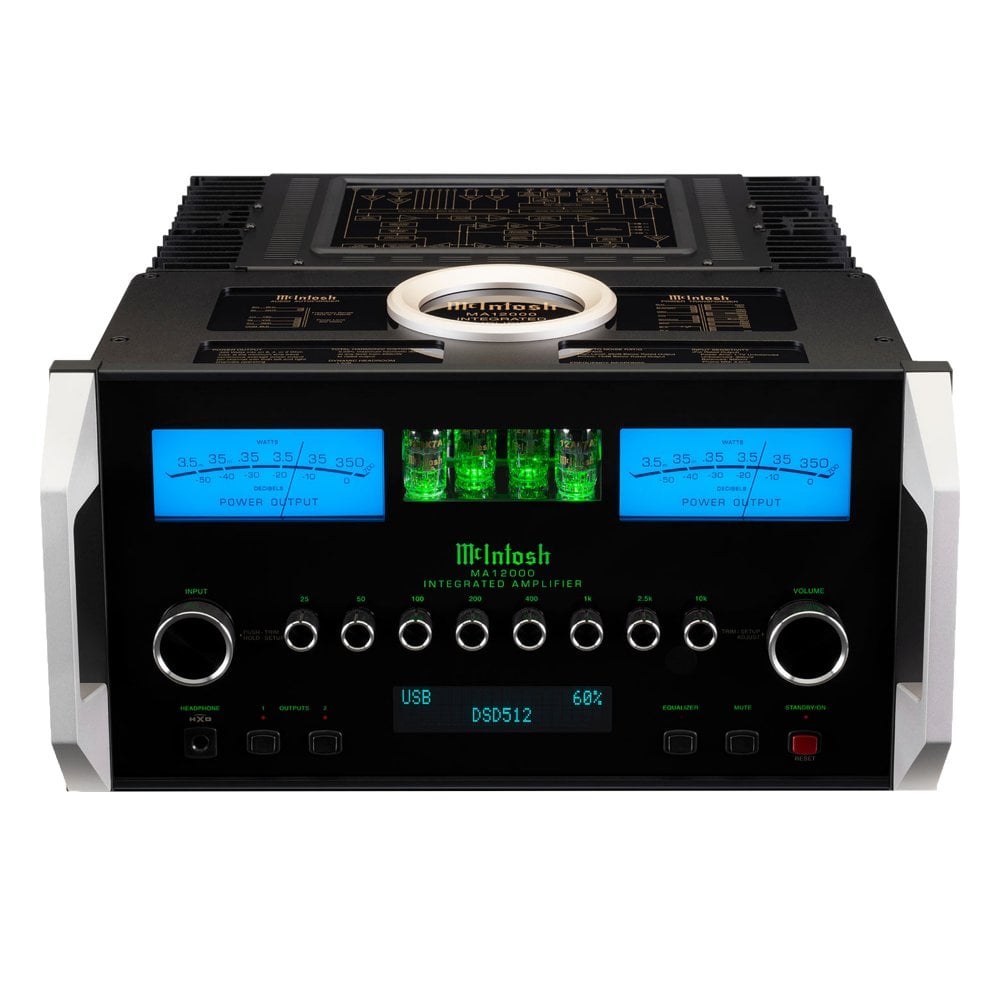

McIntosh MA12000 Hybrid Integrated Amplifier

The MA12000 includes McIntosh's Hybrid Drive™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance. It gives you the warm nuances of a vacuum tube preamplifier (or valve preamplifier as some of our friends like to say) combined with the speed and raw power of a solid state amplifier, state-of-the-art digital audio capabilities, and enough analog audio connections for virtually any home music system.

Technical Specifications:

• Power Output per Channel: 350 Watts
• Number of Channels: 2
• Speaker Impedance: 2, 4, or 8 Ohms
• Rated Power Band: 20Hz to 20kHz
• Total Harmonic Distortion: Preamplifier: 0.03% / Amplifier: 0.005%
• Dynamic Headroom: 1.5dB
• Frequency Response +0,-0.5dB: 20Hz to 20kHz
• Frequency Response, +0, -3dB: 10Hz to 100kHz
• Sensitivity Phono (Moving Coil): 0.30mV
• Sensitivity Phono (Moving Magnet): 3.0mV
• Sensitivity High Level (Balanced / Unbalanced): 600mV/300mV
• Sensitivity (Power Amp input): 1.7V
• Signal To Noise Ratio (Moving Coil): 75dB
• Signal To Noise Ratio (Moving Magnet): 77dB
• Signal To Noise Ratio (High Level): 95dB
• Signal To Noise Ratio (Power Amp input): 114dB
• Input Impedance (Balanced / Unbalanced): 44K/22K
• Damping Factor: >40
• Maximum Output (Balanced / Unbalanced): 8V Unbalanced / 16V Balanced
• Balanced Input: 2
• Unbalanced Input: 6
• Phono Input Moving Coil: 1 (adjustable loading)
• Phono Input Moving Magnet: 1 (adjustable loading)
• Upgradeable Digital Audio Module: Yes: DA2
• Digital Coaxial Input: 2
• Digital Optical Input: 2
• Digital MCT Input: 1
• Digital USB Input: 1
• HDMI (ARC) Input: 1
• Balanced Variable Output: 1
• Unbalanced Fixed Output: 1
• Unbalanced Variable Output: 1
• Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
• Subwoofer Output: 0
• AM/FM Tuner option: No
• Home Theater PassThru: Yes
• Unbalanced Analog Connector Type: Premium gold-plated solid brass
• Speaker Binding Post Type: Patented Solid Cinch™ Speaker Binding Posts
• Service Port: 1
• Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
• Digital Coaxial Input Sample Rate: 24-bit/44.1kHz to 192kHz
• Digital Optical Input Sample Rate: 24-bit/44.1kHz to 192kHz
• Digital MCT Input Sample Rate: 16-bit/44.1kHz (CD) / DSD64 (SACD)
• Digital USB Input Sample Rate: 32-bit/44.1kHz to 384kHz (PCM) / DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
• Tone Controls: 8-Band
• Tone Bypass and Input Assign: Yes
• RS232 Control Input: Yes
• Power Control Output: 1 Main, 2 Trigger
• Rear Panel Data Port: 4
• Rear Panel IR Sensor Input: Yes
• Input Level Match: Yes
• Vacuum Tube or Solid State: Preamplifier: Vacuum Tube / Amplifier: Solid State
• Output Type: Autoformer™
• Output Meters: Yes
• Dual Layer Chassis: Yes
• Chassis Finish: Polished stainless steel & black painted steel
• McIntosh Monogrammed Heatsinks™: Yes
• Power Requirement: 120V, 50/60Hz, 6.6A
• Standby Power Requirement: <0.25 Watts
• Unit Dimensions (W x H x D): 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm)
• Unit Weight: 108 lbs (48.9kg)
• Shipping Weight: 141 lbs (63.9kg)
