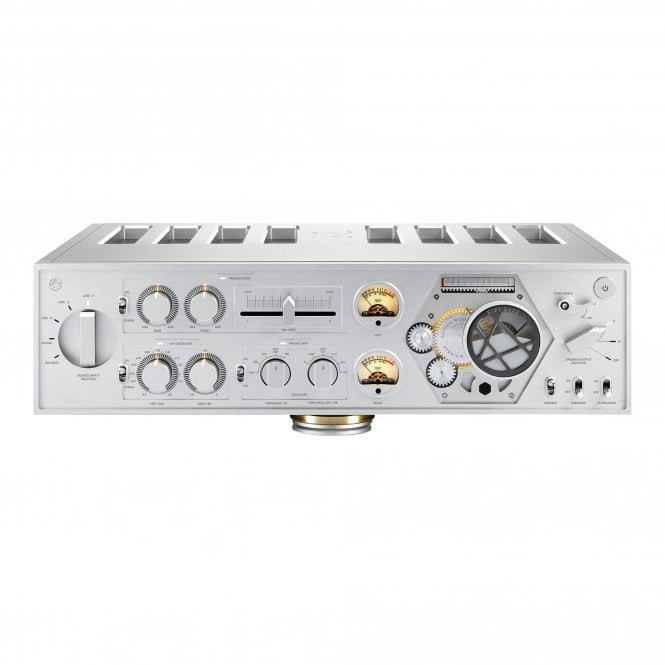

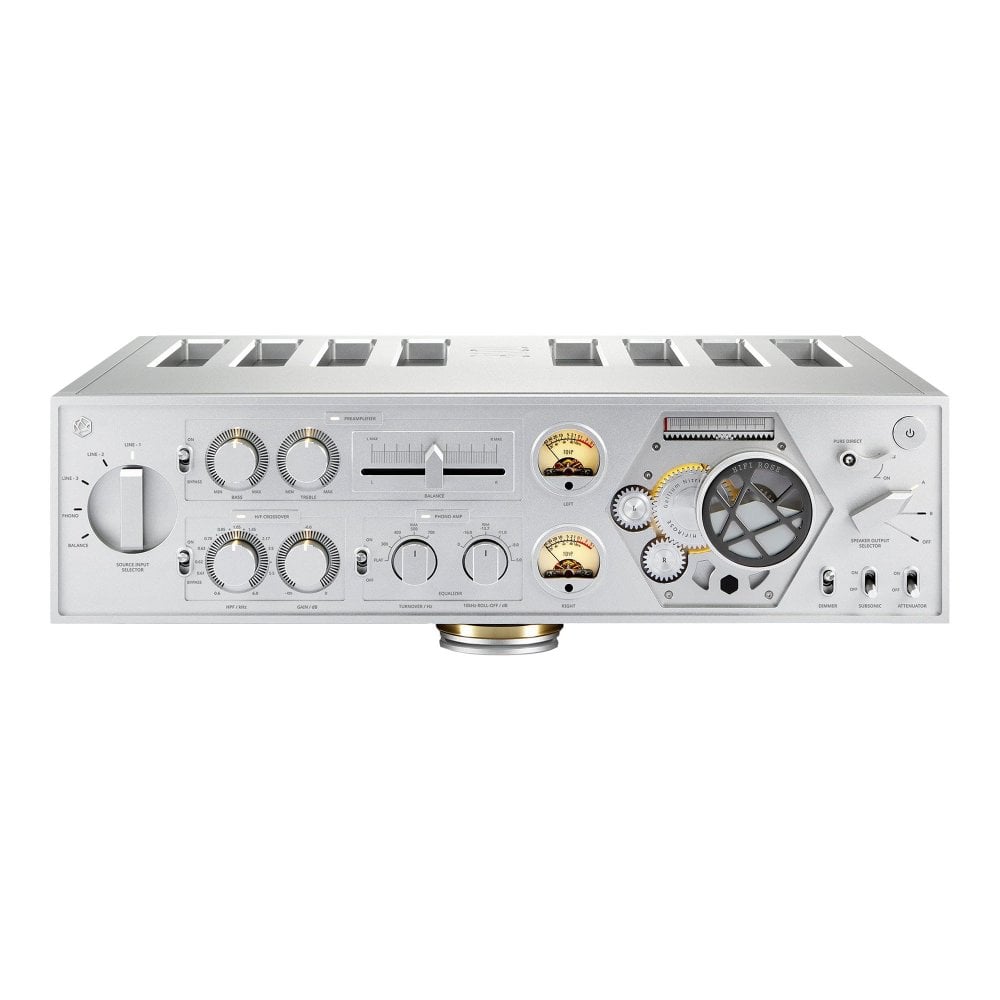

HiFi Rose RA180 Integrated Amplifier

The overall design of the RA180 perfectly complements the award-winning RS150B music streamer in its overall impression. However, its semi-exposed, retro-industrial aesthetic is one that sits at home in any premium audio system. Constructed from high-purity aluminium, the chassis houses a wealth of complex engineering inside.

The RA180 is based around a new concept Class AD Amplifier technology. Class D amplification provides higher efficiency and higher output, as well as improved noise and distortion measurements, compared to more traditional Class AB designs. However, many Class D designs in the past have suffered in sound quality, due to limitations in the digital circuitry. HiFi Rose’s state-of-the-art Class AD amplifier resolves these problems with the use of innovative new materials.

The RA180’s Class AD amplifier boasts Gallium Nitride FETs as opposed to more common Silicon FET technology. The result of this design is a high-speed, perfectly accurate amplification stage with almost no dead time, allowing it to perform far more naturally, like a pure analogue amplifier.

Technical Specifications:

• Amplifier Out: 4׸: 200W x 4ch (800W) / 8׸: 200W x 4ch (800W) / BTL Mode On: 400W x 2ch (800W)
• Input Sensitivity: Balanced Input: 2,000mV / Unbalanced (Line 1,2,3) Input: 1,000mV / Phono (MM/MC) Input: 5mV/0.5mV
• Impedance Input: Balanced Input: 44k׸ / Unbalanced (Line 1,2,3) Input: 47k׸ / Phono (MM/MC) Input: 47k׸
• Bandwidth (0dBr¶ñ3dB/8׸): Speaker Output: 10Hz ~ 90kHz / H/F Speaker Output: 10Hz ~ 90kHz
• Frequency Response (1W, 0¶ñ1dB/8׸): Speaker Output: 10Hz ~ 90kHz / H/F Speaker Output: 10Hz ~ 90kHz
• THD Measure (Balanced & Unbalanced Input): 0.005% (50W)
• Damping Factor (Speaker & H/F Speaker Output): >150
• Signal to Noise Ratio measure (S/N): BTL 107dB / Balanced, Unbalanced: 105dB / Phono MM/MC: 80dB (MM), 60dB (MC)
• Impedance Output: 53m׸
• Subsonic Filter: On/Off Switch (-3dB): 50Hz
• Tone Control: On/Off Switch - Bass(100Hz)/Treble(10kHz): ¶ñ15dB
• Crossover: On/Off Switch ƒ?? HPF (-3dB): 600Hz~ 6kHz
• Phono Turnover: Flat / 300Hz (+7.7dB@100Hz) / 400Hz (+11.7dB@100Hz) / 500Hz (+13dB@100Hz) / 700Hz (+14.5dB@100Hz)
• Phono Roll-Off: Flat / 1.6kHz (-16dB@10kHz) / 2.1kHz (-13.7dB@10kHz) / 3.18kHz (-11.7dB@10kHz) / 3.4kHz (-8dB@10kHz) / 6.36kHz (-5dB@10kHz)
• Trigger: Trigger can be turned on: 3.3v ~12V
• Size: 430(W) X 350(D) X 110(H) / Including Feet: 430(W) X 391(D) X 100(H)
• Weight: 16.7kg
• Body: High-Purity Aluminium
• Power: SMPS (800W)
• Voltage: AC100-230V, 50/60Hz
• Remote Control IR Input: 38kHz Infrared Ray (Within 10m of operating distance)
