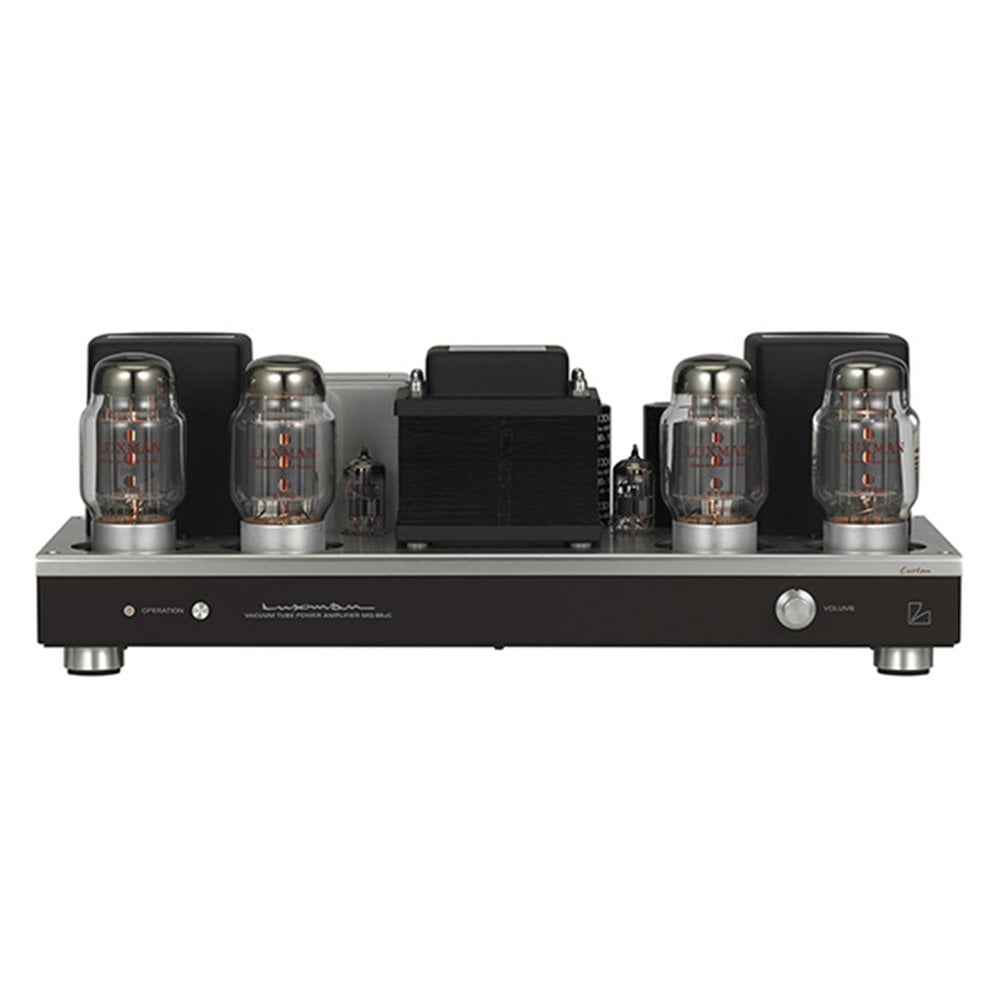

Luxman MQ-88uC Power Amplifier

Since the launch of their SQ-5A vacuum tube integrated amplifier in 1961, Luxman have continued making vacuum tube amps without a break. They have produced many models that are highly valued as signature models and satisfied music lovers are enjoying them to this day, even several decades after their release. The CL-38uC and MQ-88uC combine LUXMAN's history of producing fine vacuum tube products and the traditional wisdom and skills gained along the way.

Technical Specifications:

• Rated output: 25W + 25W (4Ω, 8Ω, 16Ω)
• Input sensitivity: 890mV/25W
• Input impedance: 32kΩ
• Frequency response: 20Hz to 20kHz (+0, -0.5dB) / 10Hz to 100kHz (+0, -3.0dB)
• Total harmonic distortion: 0.1% (1kHz/1W) / 0.5% (20Hz to 20kHz/1W)
• S/N ratio (IHF-A): 105dB
• Circuit: Driver: Mullard, Output tubes: Triode connection
• Vacuum tubes: ECC83S×2, ECC82×2, KT88×4
• Power supply: 230V~(50Hz)/115V~(60Hz)
• Power consumption: 170W, 140W (under no signal)
• External dimensions: 440(W) x 184(H) x 230(D) mm / 17mm front panel knob of and 28mm rear panel terminals are included in the depth measurement
• Net weight: 16.1kg (main unit)
• Accessories: Power cable
• Speaker terminal Supported Y-lug terminal dimension: Width of part a: 14.5mm or less / Width of part b: 7.5mm or more
• *Connection may be difficult depending on the shape of the Y-lug terminal.
