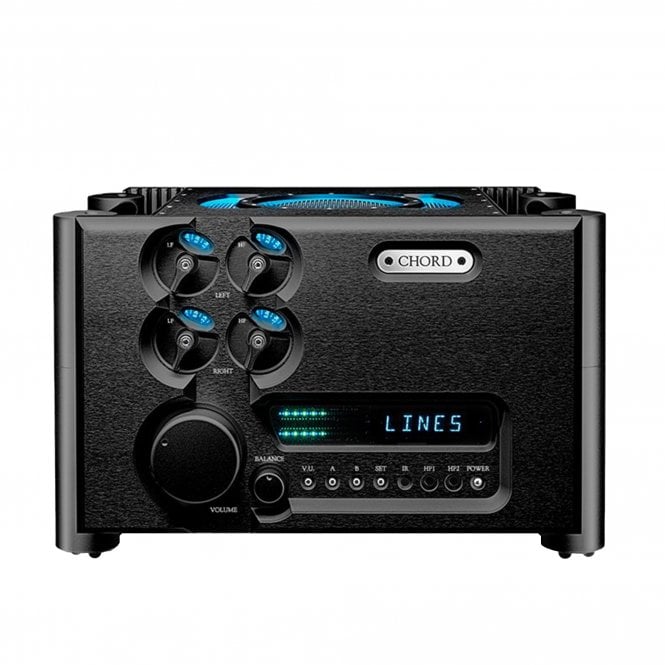

Chord Electronics Ultima Pre Preamplifier

Code: CE-ULTIMA-PRE

£35,000.00
Secure yours with a deposit of
(FREE UK Delivery)
|

Item out of Stock | Usually dispatched within 24 hours

Please Note: This item cannot be ordered online. If you are interested, please click on the 'Enquire' button above.

Designed to be entirely uncompromising, the ULTIMA preamp is a world-class amplifier with advanced proprietary Chord Electronics technology. A product of three decades of research, design and engineering here in the UK, it benefits from true dual-mono construction with separate ultra-high-frequency power supplies for each channel, giving the best possible separation. With the addition of valuable low-noise circuitry, the noise floor performance is exceptional, at beyond -117dB.

Key Features:

HF Switch Mode Power Supply
Blue Velvet ALPS PotentiometerBlue Velvet ALPS Potentiometer
-125dB Signal to Noise Ratio-125dB Signal to Noise Ratio
Advanced Shielding TechnologyAdvanced Shielding Technology
Fully Balanced CircuitryFully Balanced Circuitry
Analogue Signal PathAnalogue Signal Path
Input/Output BufferingInput/Output Buffering
4x Stereo RCA Inputs4x Stereo RCA Inputs
4x Stereo XLR Inputs4x Stereo XLR Inputs
3x Stereo RCA Outputs3x Stereo RCA Outputs
3x Stereo XLR Outputs3x Stereo XLR Outputs
Convection CooledConvection Cooled
Included Top Light RingIncluded Top Light Ring
12v Trigger On/Off Input/Output12v Trigger On/Off Input/Output
Solid Aluminium ChassisSolid Aluminium Chassis

Add To Compare

Product Description
Delivery

Featuring impressive double-height dimensions, the ULTIMA preamp has been created to perfectly complement the flagship ULTIMA mono power amplifier, also the most advanced in the company’s 30-year history. With wide-ranging inputs and outputs, including balanced connectivity, ULTIMA offers complete flexibility for high-performance partnering equipment, enhanced further by the fascia-mounted separate frequency EQ adjust controls for the left and right channels. Headphone outputs offer further flexibility for late-night and personal listening in style.

Each ULTIMA preamp is hand-made in the Kent factory, with the various stages of build and production carefully overseen by one highly skilled technician. Sensitive internal circuit features are protected by solid milled aluminium shielding to prevent RF interference and Chord Electronics’ legendary UK-produced aircraft-grade aluminium provides a solid and resonance-eliminating enclosure for the electronics within, complemented by the famous Integra Leg System.

Technical Specifications:

Inputs: 4x Stereo Balanced XLR Inputs – Line In 1, Line In 2, Line In 3, and Line In 4 / 4x Stereo Unbalanced RCA Inputs – Line In 5, Line In 6, Tape 1, and Tape 2
Outputs: 3x Stereo Outputs – Selectable – Either via Balanced XLR or Unbalanced RCA / 1x Stereo Balanced XLR AV Bypass Input
Frequency Range: 2.5Hz – 200kHz +/- 3dB
Total Harmonic Distortion: 0.002% 20Hz – 20kHz
Intermodulation Distortion: -125dB on all inputs
Signal to Noise Ratio: -117dB on all inputs
Channel Separation: 20Hz @ 110dB, 1kHz @ 105dB, 10kHz @ 100dB, 20kHz @ 95dB
Channel Balance: 0.01dB
Input Max Voltage: 17v RMS Balanced – 8.5v RMS Unbalanced
Output Max Voltage: 17v RMS Balanced – 8.5v RMS Unbalanced
Output Offset: 0mV (Both Channels)
Potentiometer Performance: 0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel)
Nominal Gain: All inputs subject to six levels of switchable gain (x0.5, x1, x1.5, x2, x2.5, x3)
Input Impedance: 100 kΩ Balanced – 50 kΩ Unbalanced
Output Impedance: 100Ω (Short Circuit Protected)
Operating Voltage: 85v – 270v AC (50Hz – 60Hz) Auto Switching
Power Consumption: 60w
Dimensions Without Integra Legs: 420mm (w) x 355mm (d) x 310mm (h)
Dimensions With Included Integra Legs: 480mm (w) x 355mm (d) x 350mm (h)
Weight: 30kG
