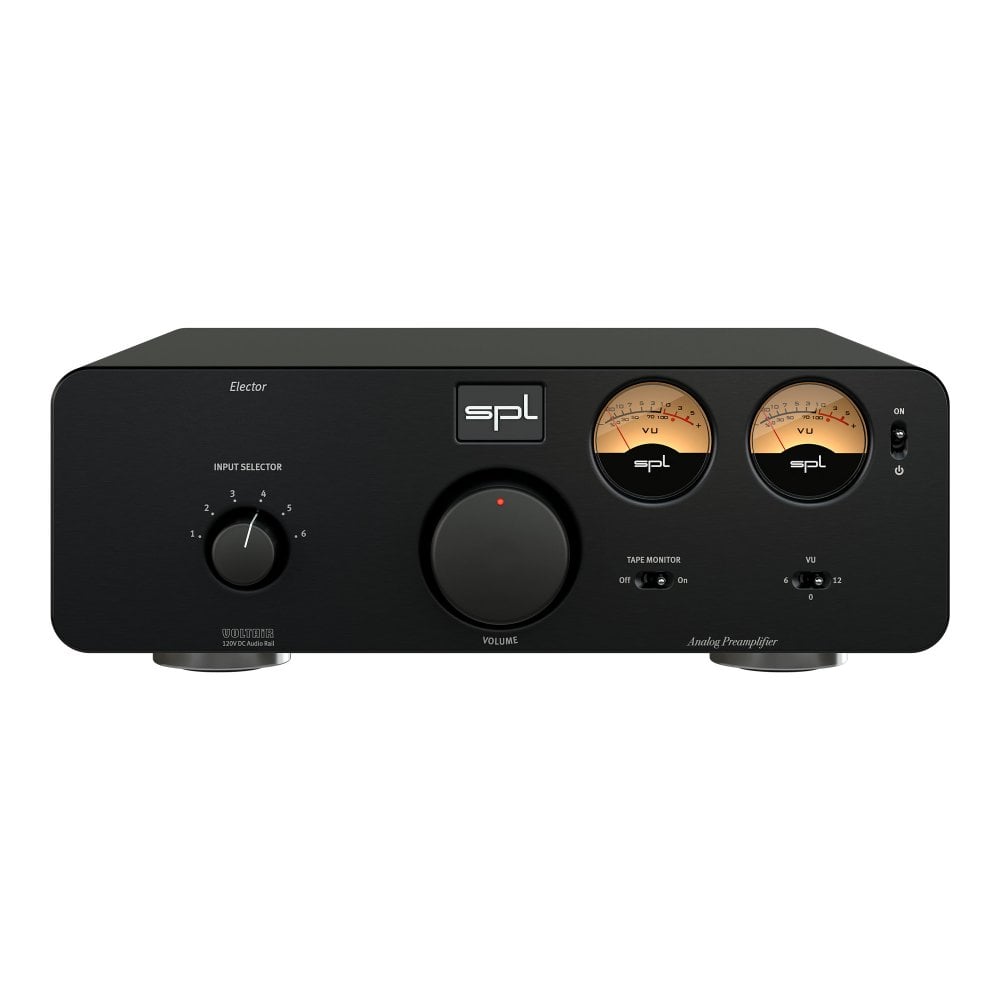

SPL Elector Analog Preamplifier

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorised Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further. The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote control

The volume control can be remotely controlled with any infrared remote control. The Director Mk2 learns to communicate with it with the simple push of a button.

Source of joy

Up to six analog stereo sources can be connected to the Elector. The Elector offers three pairs of balanced inputs with XLR jacks and three standard inputs with gold-plated RCA jacks.

Good ol' times

Two mechanical VU meters visualise the input levels for the left and right audio channel. With the VU switch you can optimise the display for different signal levels.

Tape Monitor

A tape monitor circuitry is quite retro. Who still owns a cassette recorder or a tape machine? Who else loops in an equaliser?

To put it another way: Who would like to do it and cannot do it because no manufacturer offers a tape monitor circuit anymore? Well, those who want can again.

Today’s audio levels are much higher than in the past and many recorders will be overloaded by them. In that case simply press the switch and the level to the recorder is lowered by 10 dB. To compensate, the level from the recorder is increased by 10 dB. Et voilà.

All variable – or Slave Thru?

The Elector provides two stereo output pairs for connecting power amplifiers or active loudspeakers.

One pair of outputs with XLR, the other with RCA outputs. Both have the same output signal, which is controlled by the big volume control. Thus, a pair of speakers can be fed via one stereo output and a subwoofer via the second stereo output. The playback volume for both stereo outputs is adjusted together via the volume control on the Elector.

With a DIP switch on the back of the device, the volume control for the RCA and XLR outputs can separately be switched out of the signal path – this makes the respective output a “Slave Thru” output to e.g. connect a headphone amplifier with its own volume control. The volume control of the Elector no longer affects the playback volume of the connected headphone amplifier when a stereo output’s Slave Thru mode is active.

Home Theater Bypass

Since the hardware revision 1.1, the Elector features a Home Theater Bypass function. This allows the Elector to be used in combination with a multi-channel home theater system. The L and R channels of the home theater system can be simply connected to Input 6 of Elector. When the Home Theater Bypass is active (DIP 4), Input 6 is no longer affected by the volume control of the Elector.

Everything under control – AMP CTL

The standby mode of devices with 12V trigger input, can be switched on and off via AMP CTL, together with the Elector. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.

The VOLTAiR Technology

The 120V technology is SPL's reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In SPL's Professional Fidelity series, we refer to this unsurpassed technology as VOLTAiR technology.

The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers.

The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.

By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.

The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.
