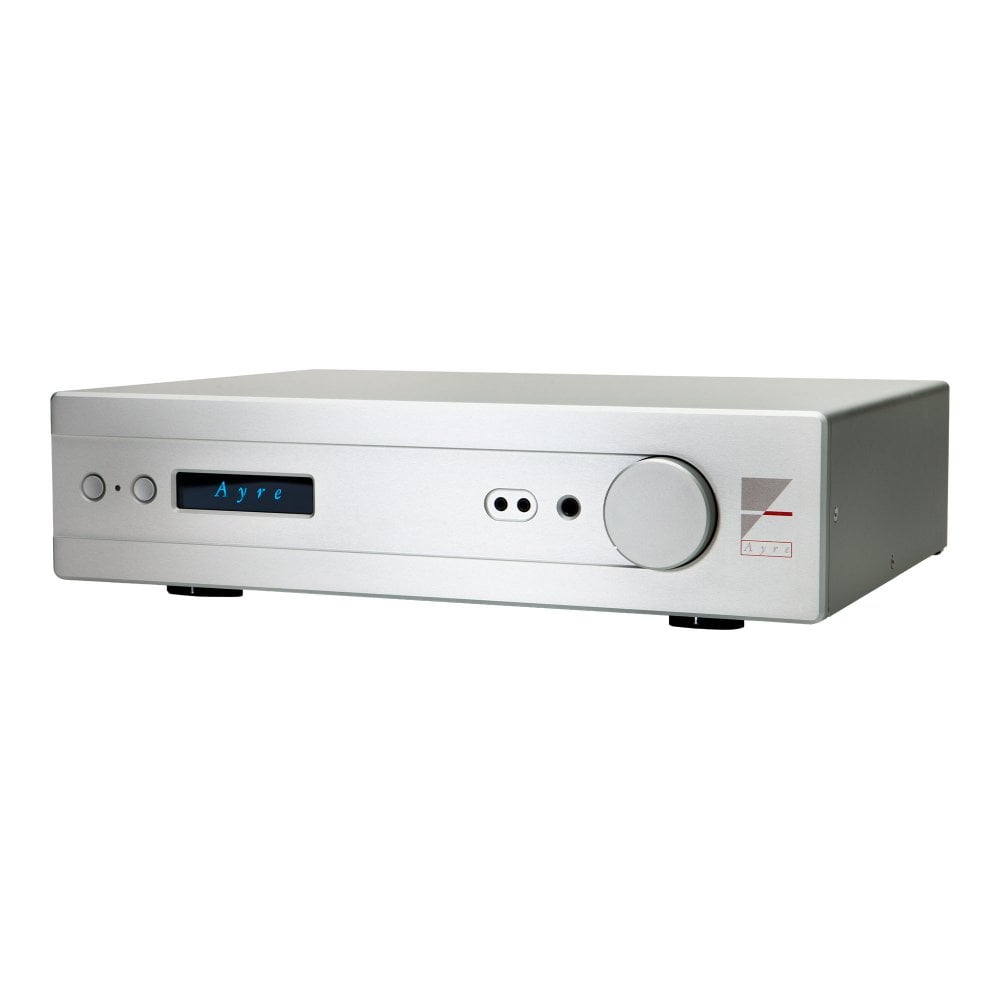

Ayre KX-8 Variable Gain Preamplifier

Code: AY-KX8

From £6,500.00
Secure yours with a deposit of
(FREE UK Delivery)
|

Item out of Stock | Usually dispatched within 24 hours

The KX-8, inspired by the renowned KX-R preamplifier, incorporates the same true variable gain volume control technology, but with a more straightforward and affordable design. It ensures a consistent signal-to-noise ratio, allowing your music to shine at any volume. Designed with Ayre’s proprietary innovations, the KX-8 features fully-balanced, true zero-feedback circuitry, delivering natural musicality, exceptional dynamics, and remarkable detail.

Available Versions

Base - Variable Gain Preamp - 2 x Balanced Inputs, 3 x Single Ended Inputs; 1 x Balanced or Single Ended Out
with DAC - as Base with the addition of X-8 DAC Core Circuit - 1 x AES, 1 x S/PDIF, 2 x Optical Inputs
Full - as with DAC with the addition of 1 x USB2, 1 x NET2

Key Features:

Ayre’s Exclusive Continuously Variable Gain Transimpedance (CVGT) volume control
Zero-Feedback, Fully-Balanced Discrete Circuitry
Ayre’s Double Diamond Output Stage
Ayre’s Exclusive Equilock Gain Stage
Linear Analog Power Supply
High-Speed Circuit Board Material

Add To Compare

Product Description
Product Specifications
Delivery

The KX-8 Preamplifier offers exceptional customisation options to suit any system, with a range of optional digital inputs, including USB and Network inputs, making it incredibly versatile. It features up to eight digital inputs (Ethernet, USB, AES/EBU, S/PDIF (2), and Toslink (3)) and five analog inputs (2 Balanced, 3 unbalanced), positioning it as the ideal hub for both analog and digital sources. With the Ethernet module installed, it’s Roon-ready and pre-configured to stream from Spotify, Qobuz, and Tidal. The KX-8 will elevate both your source components and power amplifier, becoming a timeless addition to Ayre Acoustics’ legacy.

The KX-8 also offers one of our finest headphone experiences to date. Leveraging true Variable Gain volume control and zero-feedback design across the board, the balanced and unbalanced front panel connectors—driven by Ayre’s exclusive Diamond amplifier circuit—effortlessly power even the most demanding headphones. For the first time, our headphone users can experience the full benefits of Variable Gain technology, allowing music to flow effortlessly into their lives.

Amplifier Specifications:

Input impedance	1 MΩ unbalanced inputs 2 MΩ balanced inputs (1 MΩ per phase)
Input maximum voltage	4 V rms – unbalanced inputs 8 V rms – balanced inputs
Output maximum voltage	4 V RMS – Balanced Outputs 2 V RMS – Single Ended Outputs
Gain	Variable gain to match the required output level of the system without the need for attenuation.
Power consumption	40 watts in operating mode 60 watts in operating mode (volume control active)
Analogue Inputs	2 x Balanced 3 x Single Ended
Weight	5.7kg
Dimensions	440 x 330 x 115mm
