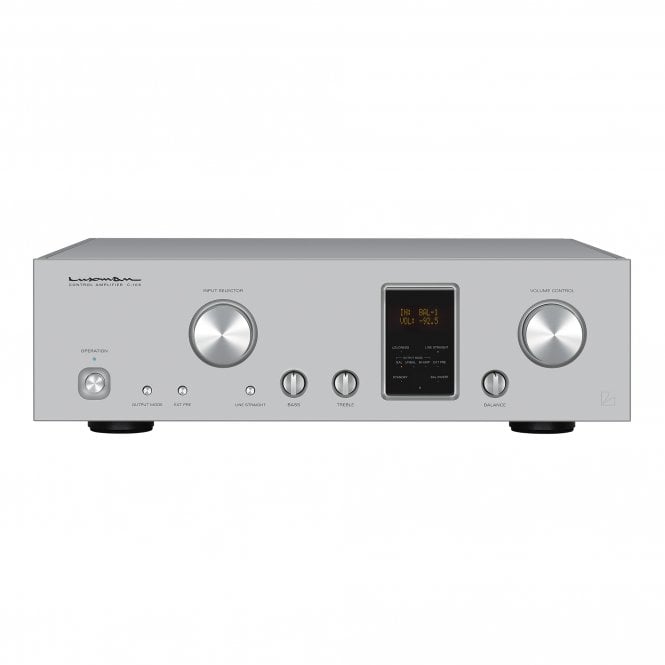

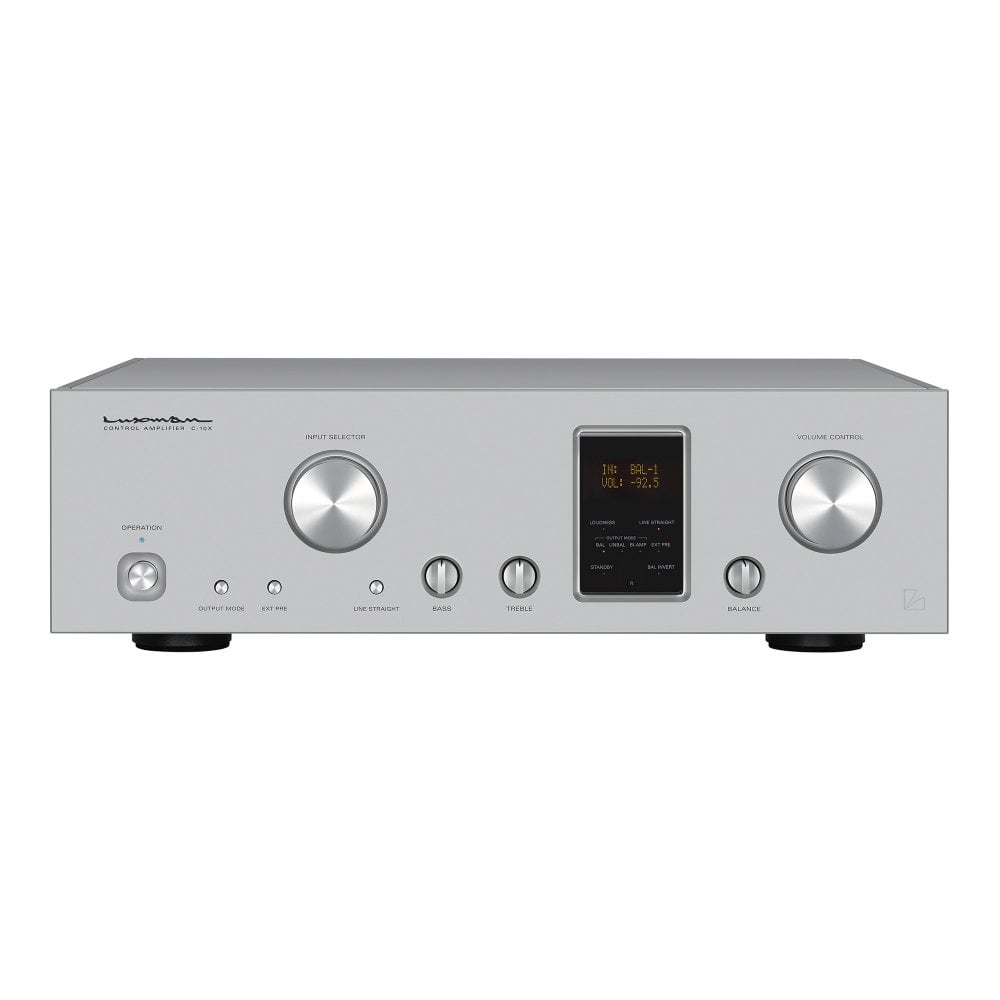

Luxman C-10X Control Amplifier

Code: C-10X
  • £16,000.00
  • (FREE UK Delivery)
Item out of Stock   |   Usually dispatched within 24 hours
Loading...

Luxman has developed a new model that creates an immersive and realistic listening experience. The flagship product, the C-10X control amplifier, features the latest technologies that bring music to life.

When you turn up the volume, the soundstage opens up in front of you, filling the room with a spacious and natural sound. We aimed to create the ultimate expression of musical reproduction with the C-10X. That's why Luxman developed the "LIFES" amplifier feedback engine and updated the original electronically controlled attenuator, "LECUA-EX". These technologies provide infinite silence, overwhelming instantaneous power, and a true sense of realism.

The C-10X control amplifier is fully balanced, using three-dimensional audio pathways for a direct and precise connection. This technology allows for an unparalleled listening experience that truly captures the essence of the music. With the C-10X control amplifier, you can enjoy a pure and authentic representation of your favourite songs.

Key Features:

  • 3 x Balanced XLR Inputs, 3 x RCA Inputs
  • 2 x Balanced XLR Outputs, 2 x RCA Outputs
  • 2-band tone control

The M-10X flagship power amplifier features LIFES, a new amplification feedback engine that provides a more realistic, fresh, and rich musicality and overwhelming audio performance. The C-10X control amplifier, the first model upgrade in 10 years, also has the LIFES engine at its heart. The volume control system has been refined with the LECUA electronically controlled attenuator, which switches over a series of fixed resistors arranged in order in the circuit. The LECUA-EX reads the motion pulses of a rotary encoder entirely disconnected from the audio signal path, ensuring smooth volume control and suppressing sound quality deterioration. In the LIFES preamplifier circuit, bespoke components are directly connected to the LECUA-EX system in a fully balanced configuration to realise the ideal structure as a preamplifier.

The design of the C-10X features bold and delicate slanted edges between the chassis and the front panel, creating a three-dimensional and sensual housing design that is common to both the M-10X and D-10X flagship models. This design embodies an overwhelming presence and high musicality. The finely machined, hairline-finished aluminum top panel creates a beautiful contrast with the blasted white front panel, adding to the overall aesthetic appeal.

The C-10X features an electronically controlled bass/treble tone control, a volume-linked loudness function that matches human hearing characteristics, an external pre-input terminal that can directly connect to the pre-output of an AV amplifier. A balanced connection phase preset function that can be set independently is provided. Also included is an aluminum remote control that providing comfortable operation of most of the C-10X’s functions at your fingertips.

For the capacitors and resistors in the audio signal path, we have used a large number of custom designed components that prioritise sound quality. Original OFC cable is used for internal wiring. Input and output sections on the rear panel are equipped with 27mm pitch, robust RCA terminals and high-quality Neutrik XLR terminals to contribute the high standards of the C-10X.

Amplifier Specifications:
Frequency response 20Hz to 20kHz (+0, within -0.1dB)
5Hz to 110kHz (+0, within -3.0dB)
THD Unbalanced 0.005% (20Hz to 20kHz)
Balanced 0.003% (20Hz to 20kHz)
Signal-to-noise ratio Unbalanced 129dB
Balanced 132dB
Input impedance Unbalanced rating 1V/90Ω, max. 14.1V
Balanced rating 1V/180Ω, max. 28.7V
Output Impedence Unbalanced rating 1V/90Ω, max. 14.1V
Balanced rating 1V/180Ω, max. 28.7V
Power consumption 40W, 2.6W (at standby)
Input sensitivity Unbalanced 180mV/45kΩ
Balanced 180mV/90kΩ
Weight 19.8kg (main unit)
Dimensions 440(W) x 130(H) x 434(D) mm front side knob of 16mm and rear side terminal of 15mm included in depth
