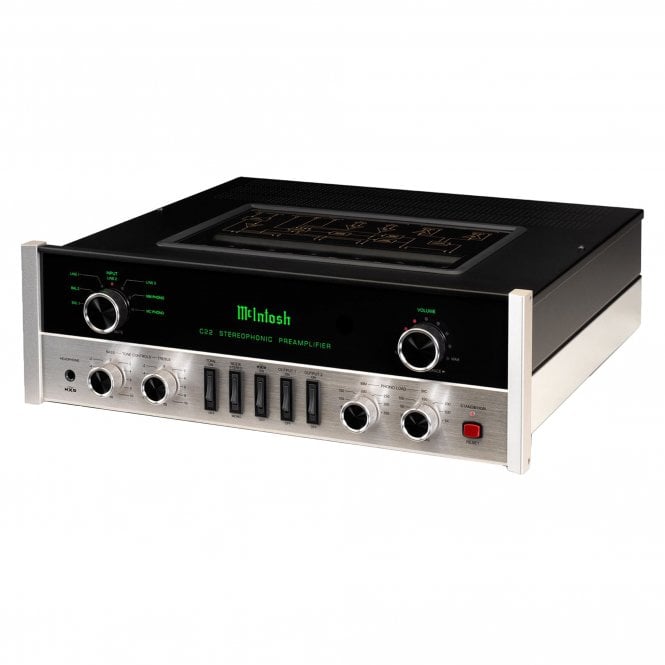

McIntosh C22 MK V Preamplifier

The C22 Mk V uses one 12AT7 and five 12AX7A vacuum tubes which can be seen through a glass panel located on the top of the preamp. Knobs and rocker switches operate all control functions while modern LED lights indicate input selection and volume level. The C22 Mk V has two balanced inputs, three unbalanced inputs, one Moving Coil and one Moving Magnet phono inputs, for a total of seven inputs. There are two pairs each of balanced and unbalanced output connections; the two outputs allow sending signals to two separate power amplifiers.

Technical Specifications:

• Number of Channels: 2
• Total Harmonic Distortion: 0.08%
• Frequency Response: +0, -0.5dB from 20Hz to 20kHz / +0, -3dB from 15Hz to 100kHz
• Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
• Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
• Sensitivity Phono (Moving Coil): 0.45mV
• Sensitivity Phono (Moving Magnet): 4.5mV
• Signal To Noise Ratio (High Level): 100dB
• Signal To Noise Ratio (Moving Coil): 75dB
• Signal To Noise Ratio (Moving Magnet): 75dB
• Voltage Gain (High Level): 15dB
• Voltage Gain (Moving Coil): 60dB
• Voltage Gain (Moving Magnet): 40dB
• Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
• Balanced Input: 2
• Unbalanced Input: 3
• Phono Input Moving Coil: 1 (adjustable)
• Phono Input Moving Magnet: 1 (adjustable)
• Upgradeable Digital Audio Module: No
• Digital Coaxial Input: 0
• Digital Optical Input: 0
• Digital MCT Inputv0
• Digital USB Input: 0
• HDMI (ARC) Input: 0
• Digital AES/EBU Input: 0
• Balanced Fixed Output: 0
• Balanced Variable Output: 2
• Unbalanced Fixed Output: 0
• Unbalanced Variable Output: 2
• Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
• Input Level Match: No
• Home Theater PassThru: No
• Unbalanced Analog Connector Type: Premium gold-plated solid brass
• Service Port: 0
• Tone Controls: Bass and Treble
• Tone Bypass and Input Assign: Tone Bypass: Yes / Input Assign: No
• RS232 Control Input: No
• Power Control Output: 2 Main, 2 Switched
• Rear Panel Data Port: 5
• Rear Panel IR Sensor Input: Yes
• Multi-Chassis or Single: Single, two layer
• Output Meters: No
• Vacuum Tube or Solid State: Vacuum Tube: (5) 12AX7A and (1) 12AT7
• Power Consumption (On): 50 Watts
• Unit Dimensions (W x H x D): 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
• Unit Weight: 25 lbs (11.3kg)
• Shipping Weight: 41.4 lbs (18.8kg)
