ATOLL PH100 Phono Preamplifier

ATOLL PH100 Phono Preamplifier

Code: PH100
  • £450.00
  • (FREE UK Delivery)
Item out of Stock   |   Usually dispatched within 24 hours
Loading...

Key Features:

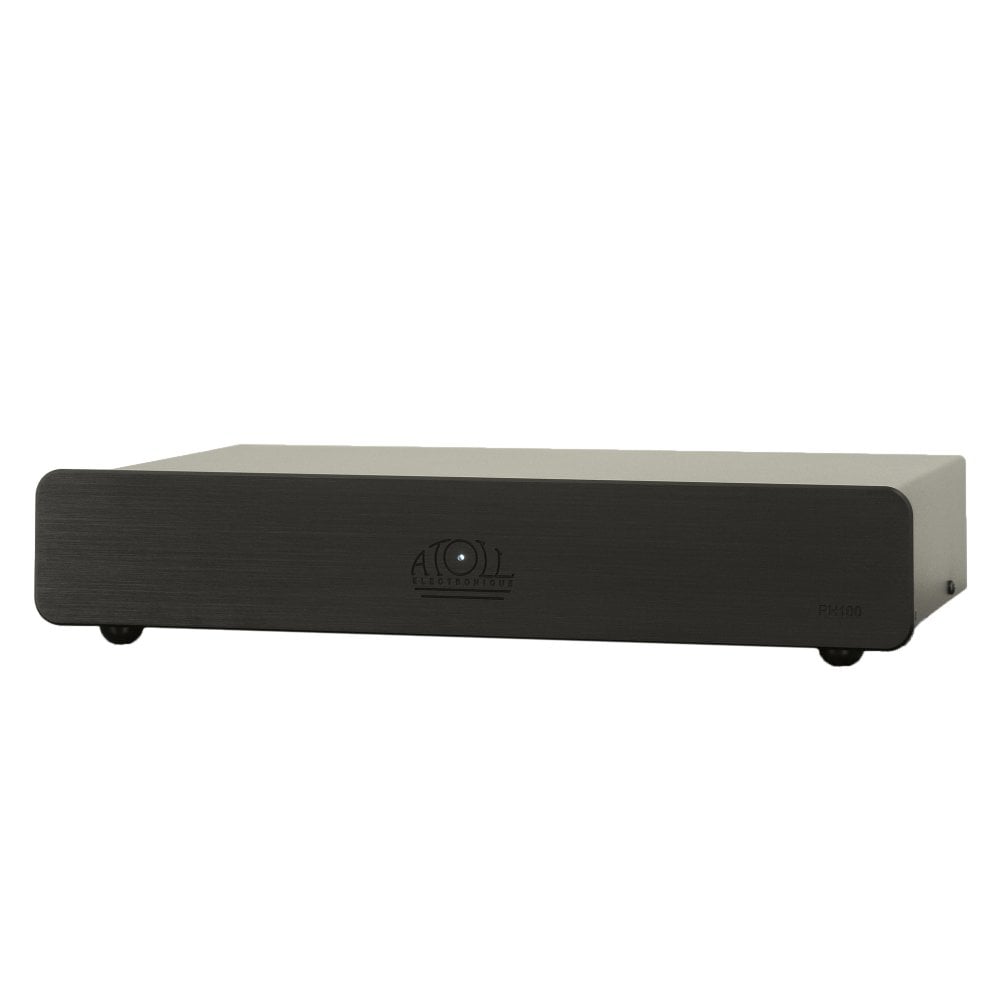

  • The Phono preamp. PH100 is an external module in a black steel chassis with a 4mm front panel (black or silver).
  • Power supply is made up of 2 top-of-the-range transformers (one by channel) with very low noise as well as 4 voltage regulators.
  • The unit is armoured in a metal box in order to preserve all interferences on the audio stages.
  • The whole circuit uses only discrete components, it does not integrate any link condensator.
  • The different setup (MM/MC, input impedance) are directly accessible from the back of the cabinet.
Ask A Question
Tell A Friend
Add To Compare

Technical Specifications:

  • Input Impedance: 47k ou 100k *
  • Input Capacitors: 100 pF ou rien *
  • Gain MM: 40 dB
  • Gain MC High: 47 dB
  • Gain MC Low: 60 dB
  • THD: 0,05 %
  • Supply: 7,2V
  • SNR at 1kHz: 80dB
  • Crosstalk at 1kHz: < -82dB
  • Linearity (20Hz to 20kHz): < 0.1dB
  • Weight: 2,5kg
  • Dimensions: 320*220*65mm
