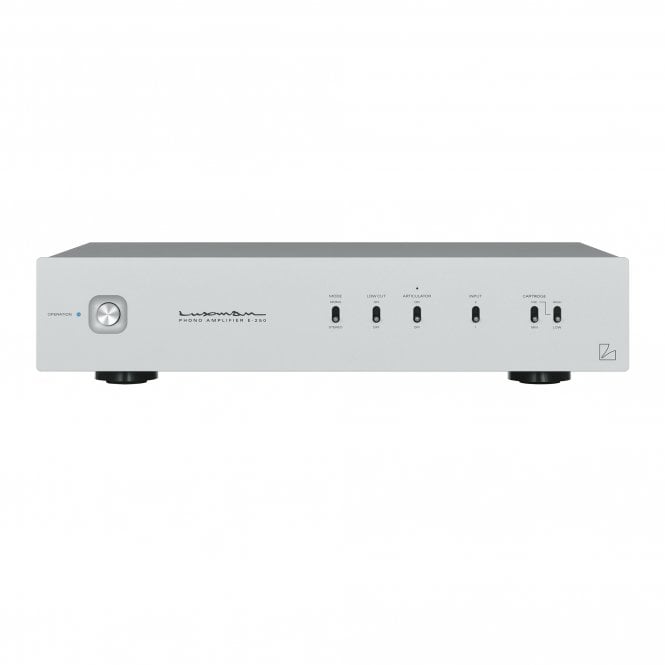

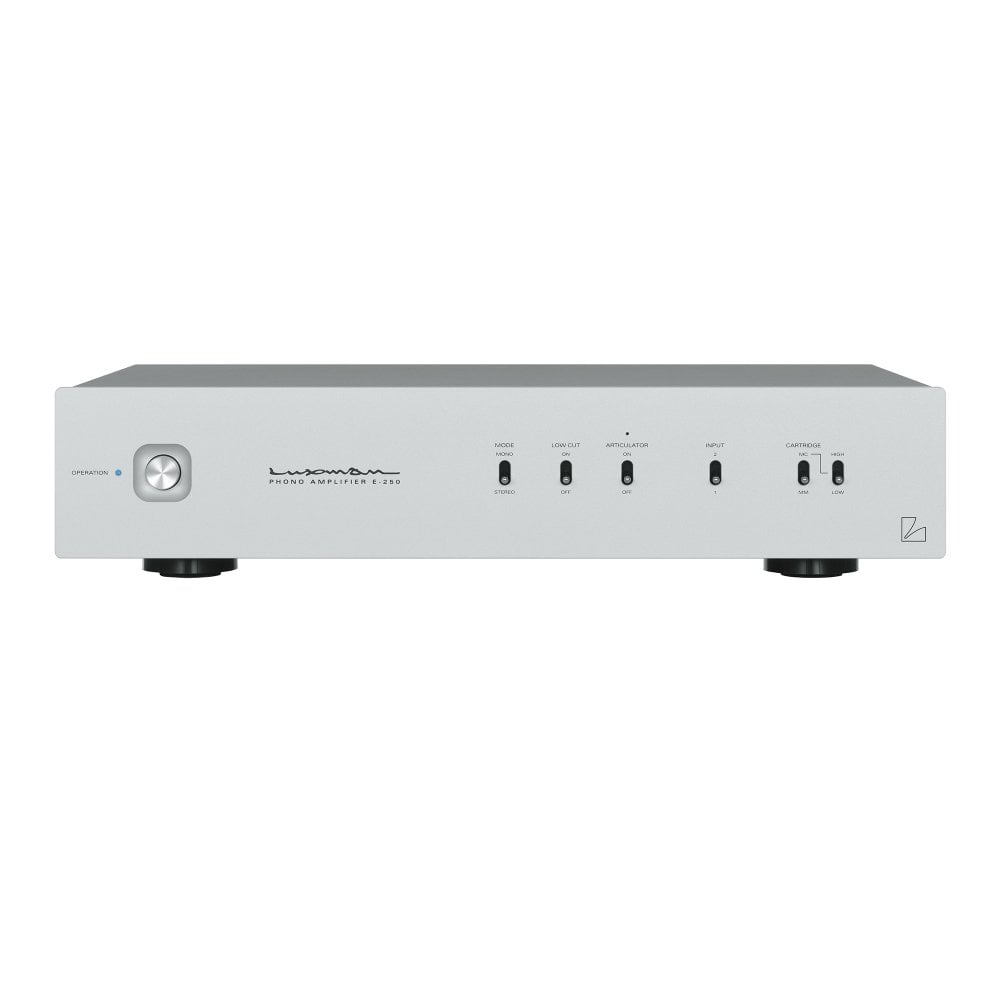

Luxman E-250 Phono Preamplifier

The rear panel is equipped with a load impedance selector (34k/47k/56k/100kΩ) and a load capacity selector (0p/100p/220p/320pF) to match the characteristics of the cartridge and exploiting it to its full potential.

Technical Specifications:

• Circuiting system: NF type equalizer amplifier
• Input sensitivity: MM: 3.2mV / MC HIGH: 0.37mV, MC LOW: 0.12mV
• Input impedance: MM: 34kΩ/47kΩ/56kΩ/100kΩ(switch selection) / MC HIGH: 40Ω, MC LOW: 2.5Ω
• Rated output/output impedance: 250mV/300Ω
• Gain: MM: 38dB / MC HIGH: 57dB, MC LOW: 66dB
• Maximum allowable input (1kHz): MM: 120mV / MC HIGH: 15mV, MC LOW: 5mV
• RIAA deviation: MM: 20Hz to 20kHz (±0.3dB), MC HIGH/MC LOW: 20Hz to 20kHz (±0.5dB)
• Total harmonic distortion: 0.003%
• S/N ratio (IHF-A): MM: 90dB / MC HIGH: 83dB, MC LOW: 80dB
• Channel separation (10kHz): 91dB
• Input: Unbalanced line x 2
• Output: Unbalanced line x 1
• Power supply: 230V~(50Hz) / 115V~(50Hz)
• Power consumption: 7W
• External dimensions: 364(W) x 81(H) x 274(D) mm / front side knob of 6mm and rear side terminal of 11mm included in depth
• Net weight: 4.3kg (main unit)
• Accessories: Power cable
