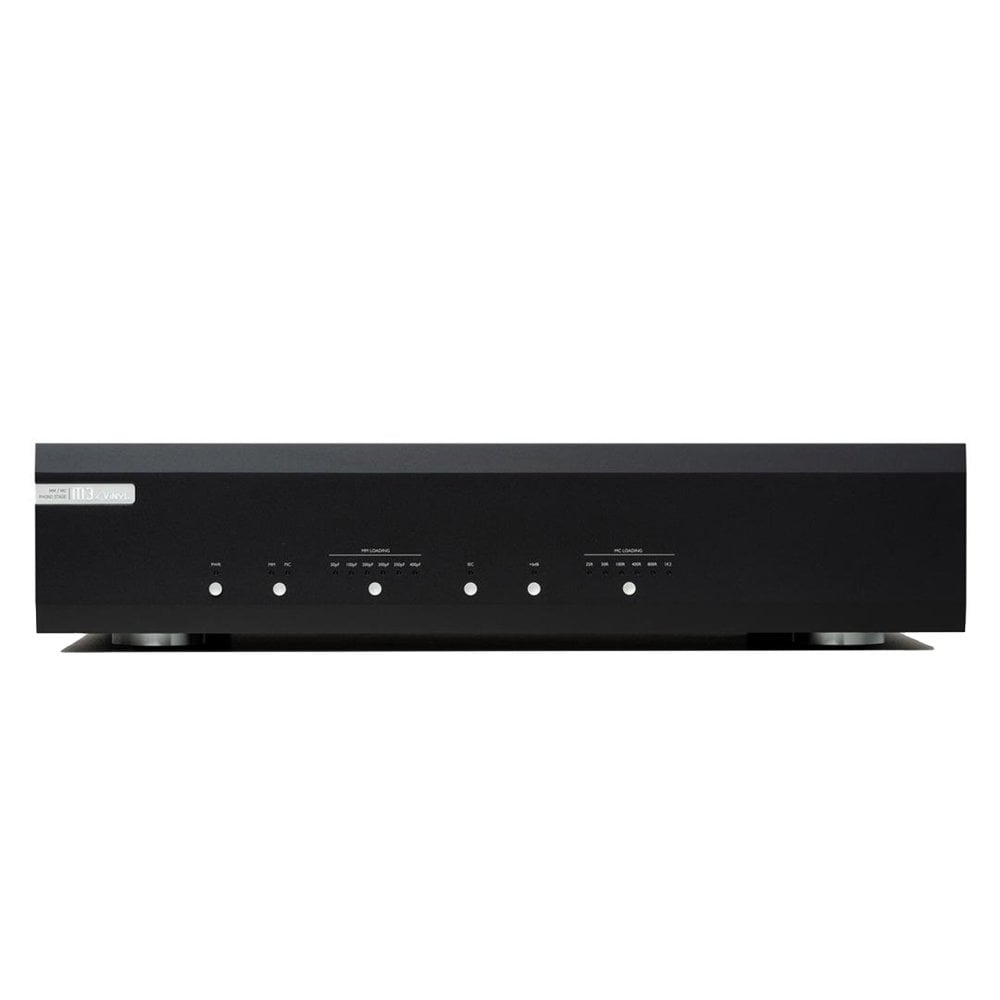

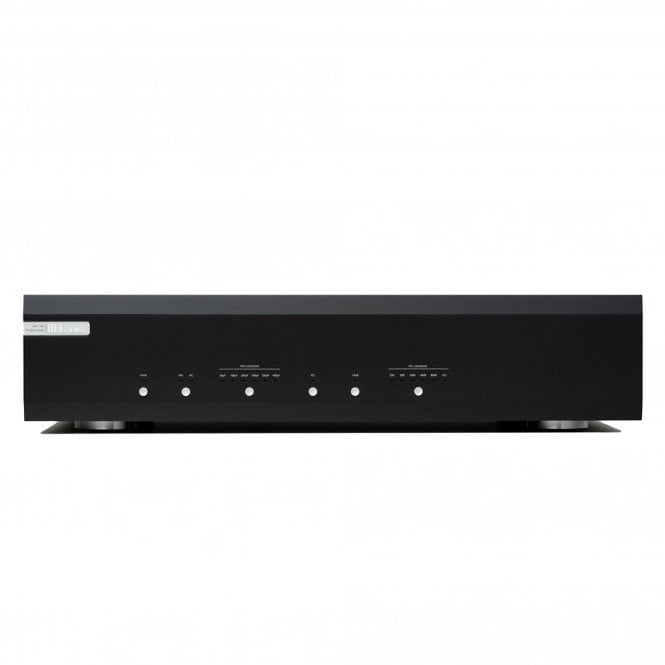

Musical Fidelity M3x Vinyl MM/MC Phono Preamplifier

The M3x Vinyl has drawn inspiration from the superior M6x Vinyl design and features an entirely discrete circuitry, which results in better technical measurements and better sound. Discrete circuits use individual electrical devices, like transistors, throughout the electrical circuit (discrete components), as opposed to integrated circuits, which feature devices such op-amps. This more traditional option of discrete circuitry perfectly suits the Musical Fidelity “sound”, as it typically results in a more neutral, natural and dynamic sonic signature.

Technical Specifications:

• Frequency response: MM: RIAA or RIAA/IEC ±0 .2dB / MC: RIAA or RIAA/IEC ±0.3dB
• Input Sensitivity: MM: 5mV in for 500mV out (at 1 kHz) / MC: 500μV in for 500mV out (at 1 kHz)
• Input Impedance: MM: 47KΩ; MC: 25Ω to 1,2KΩ selectable
• Input Capacitance: MM: 50-400pF selectable
• Gain: MM: 40 or 46dB with +6dB function / MC: 60 or 66dB with +6dB function
• THD+N: MC: <0.28%
• Signal to noise ration: MM: 71dB / MC: 59dB
• Crosstalk: MM: better than 100dB / MC: better than 90dB
• Output: 1 pair RCA: left and right 500mV nom 10V max
• Input: 1 pair RCA
• Power Requirement: Mains voltages: 230V/115V; AC 50/60Hz
• Consumption: 20 Watts maximum. 0W in standby)
• Weight: Unit only, unboxed: 6.59 kg
• Dimensions: W x H(incl. feet) x D(incl. terminals): 440 x 105 x390mm
• Standard Accessories: Mains lead: 10 Amp IEC
