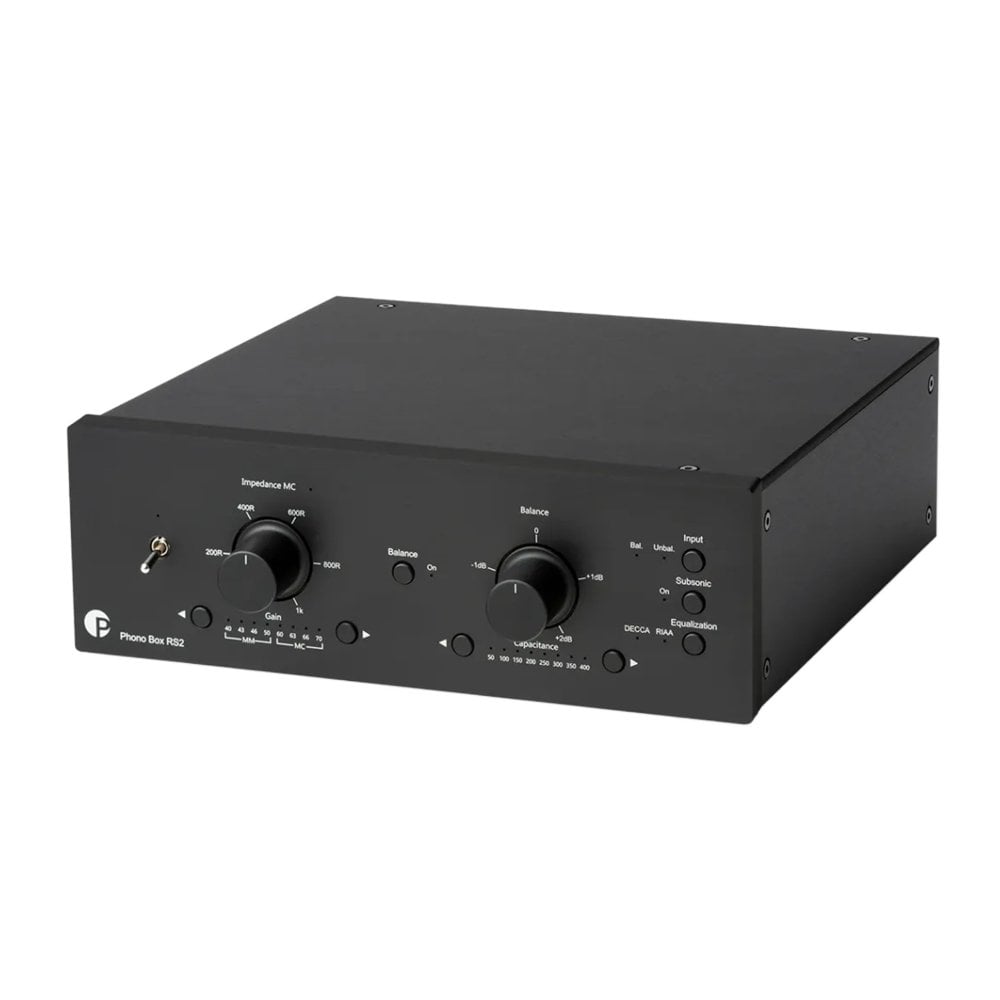

Pro-Ject Box Design Phono Box RS2 MM/MC Phono Preamplifier

Elsewhere the Phono Box RS2 circuitry is fully balanced throughout, meaning the + and – signal chains are treated individually for absolute signal integrity, resulting in less unwanted noise, errors, and interferences. It is because of this layout that the phono stage measures so well in its signal-to-noise ratio.

The Phono Box RS2 uses split passive equalisation for both its RIAA and DECCA curves. This is more costly to design and implement, but ensures the most accurate representation of the ideal EQ curve, and allows for better impedance matching.

Technical Specifications:

• Input Impedance: Fixed 47kohms, Variable 10-1000 ohms
• Gain: MM: RCA 40, 43, 46, 50dB (+6dB using XLR) / MC: RCA: 60, 63, 66, 70 dB (+6dB using XLR)
• Signal To Noise Ratio: MM: (40dB): 89dB A-wt (10mV; < 0,0024% (MC60dB, 1kHz)
• Input Impedance: Fixed 47kohms, variable 10 - 1000 ohms
• Load capacity switchable: 50, 100, 150, 200, 250, 300, 350, 400 pF
• THD: < 0,0015% (MM 40dB, 1kHz); < 0,0024% (MC 60dB, 1kHz)
• Input impedance: Fixed 47kohms, variable 10 - 1000 ohms
• RIAA Accuracy: within 0,4dB/20Hz - 20kHz
• Inputs: RCA & XLR
• Outputs: RCA & XLR
• Subsonic at: 20Hz with 18dB/octave
• Outboard Power Supply: 20V/3A DC; 110 - 240V, 50/60Hz
• PSU: 18V / 500mA DC
• Dimensions W x H x D (D with sockets): 206 x 72 x 200 (230)mm
• Weight: 1600g without power supply
• Power Consumption: max 350mA DC
