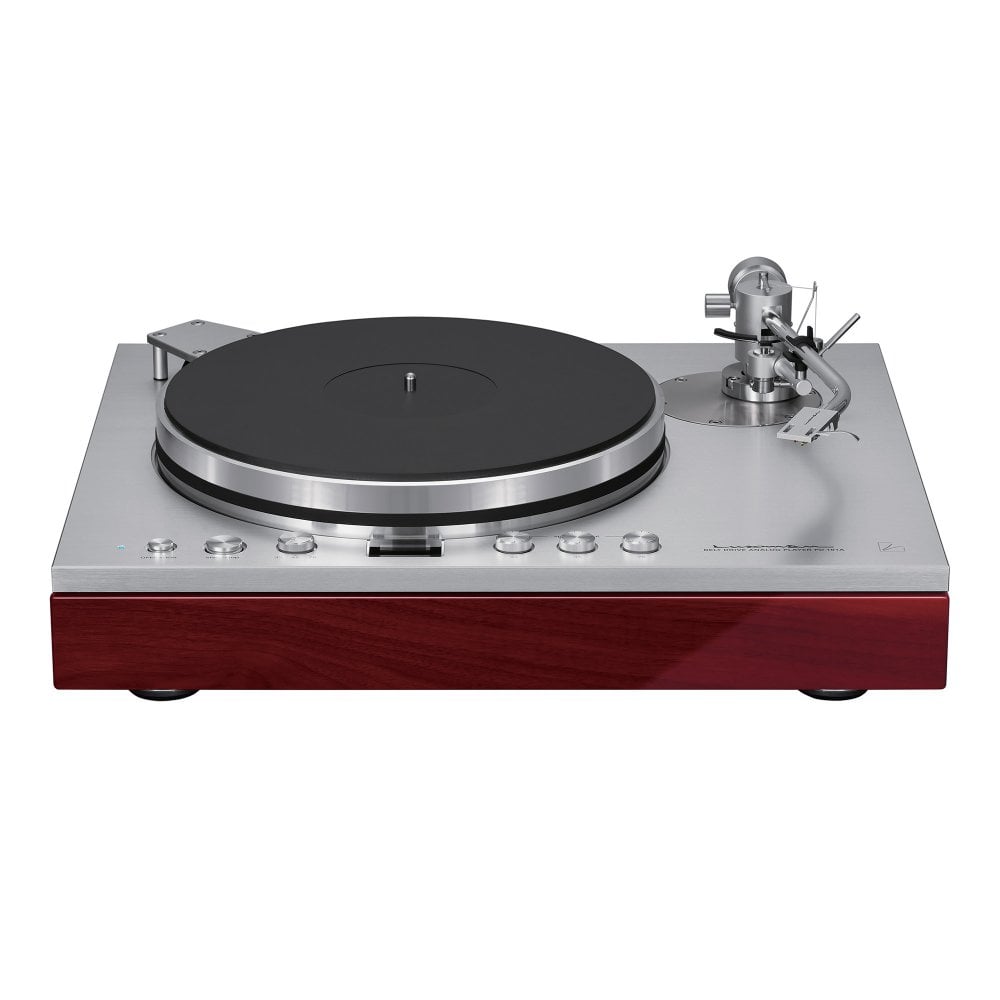

Luxman PD-191A Turntable

The PD-191A turntable system comes with a specially developed LTA-710 static balanced tonearm that employs knife-edge bearing technology for exceptional initial movement sensitivity. The arm is a joint development with the renowned audio brand SAEC and boasts of a fully-fledged original design that took two and a half years to develop. With an effective arm length of 10 inches, tracking errors are minimised, and even the gentlest musical signals picked up by the phono cartridge from the grooves on the record are reproduced faithfully. Additionally, the LTA-710 supports detailed settings such as stylus pressure, anti-skating, and height adjustment, making it possible to maintain playback fidelity with high mechanical precision. Get ready to experience music like never before with the PD-191A and its exceptional tonearm.

Brushless DC motor and high-capacity power supply

The PD-191A turntable system has an original, high-precision, high-torque, brushless DC motor that ensures powerful and stable platter rotation. It is supported by a highly stable, fully regulated large-capacity power transformer and features a sine wave PWM/PID rotation speed control programming for accurate rotation control under various demands. The high-performance reference clock using a MEMS oscillator with excellent temperature characteristics ensures precise speeds and a quiet platter drive, delivering an exceptional vinyl listening experience.

A heavyweight, high-mass platter with a huge moment of inertia

The PD-191A turntable system features a 35mm-thick, 5.2kg heavyweight aluminum platter that delivers smooth and confident rotation. The spindle supporting the platter boasts high-rigidity specifications, with a high-tensile strength stainless steel shaft and a customised bearing support system. The structure combines a PEEK thrust bearing with a matched brass radial bearing filled with organic molybdenum oil, ensuring stable lubrication even under high loads while firmly supporting the platter. The motor's energy is transferred to the platter via an EPDM drive belt, accurately supporting the high-torque brushless DC motor output without loss. Get ready for an exceptional vinyl listening experience with PD-191A's precision-engineered platter and spindle system.

Multiple integrated vibration damping structures

The underslung suspension structure, in which the main components are attached to a 15mm thick aluminium plate, has succeeded in achieving both high rigidity and damping performance. Also, by mounting the motor drive system and power transformer on an extra thick bottom plate, insulated with damping rubber, delicate signal pickup is protected from external vibrations, greatly improving the mechanical S/N ratio (rumble) and feedback resistance.

Three selectable rotation speeds with pitch control and stroboscope indicator

The PD-191A supports 3 rotation speeds, 33 1/3, 45 and 78 RPM. To visualise the rotation speed, we have adopted a reflected LED stroboscope, which was well received with the earlier PD-171 series. The new strobe reflecting strip pattern has enhanced visibility and, by utilising a dedicated control for each individual rotation speed, more reliable and precise rotation speed adjustments are possible.

Original anti-vibration design

The PD-191A turntable system features originally designed, large-diameter insulator legs that can be adjusted up to 5mm in height to prevent the transmission of feedback and external vibrations. To maintain horizontal alignment, these legs incorporate special damping rubber with excellent temperature characteristics and resistance to long-term deterioration. This ensures that the turntable remains stable and free from external vibrations, delivering an exceptional vinyl listening experience.

Optional LMC-5 Moving Coil Cartridge

Luxman's latest phono cartridge, the LMC-5, is designed to capture all the musical information pressed on a record. With 40 years of experience, the MC-type power generation engine features a cross-mounted iron core with a compact magnetic system to improve efficiency. For the vibration detection system, the cartridge features an aluminium cantilever and a SHIBATA stylus, known for its excellent tracing ability. The unique housing structure was developed through repeated prototyping and fine-tuning. We have designed this cartridge with confidence for all vinyl lovers who value its musicality.
