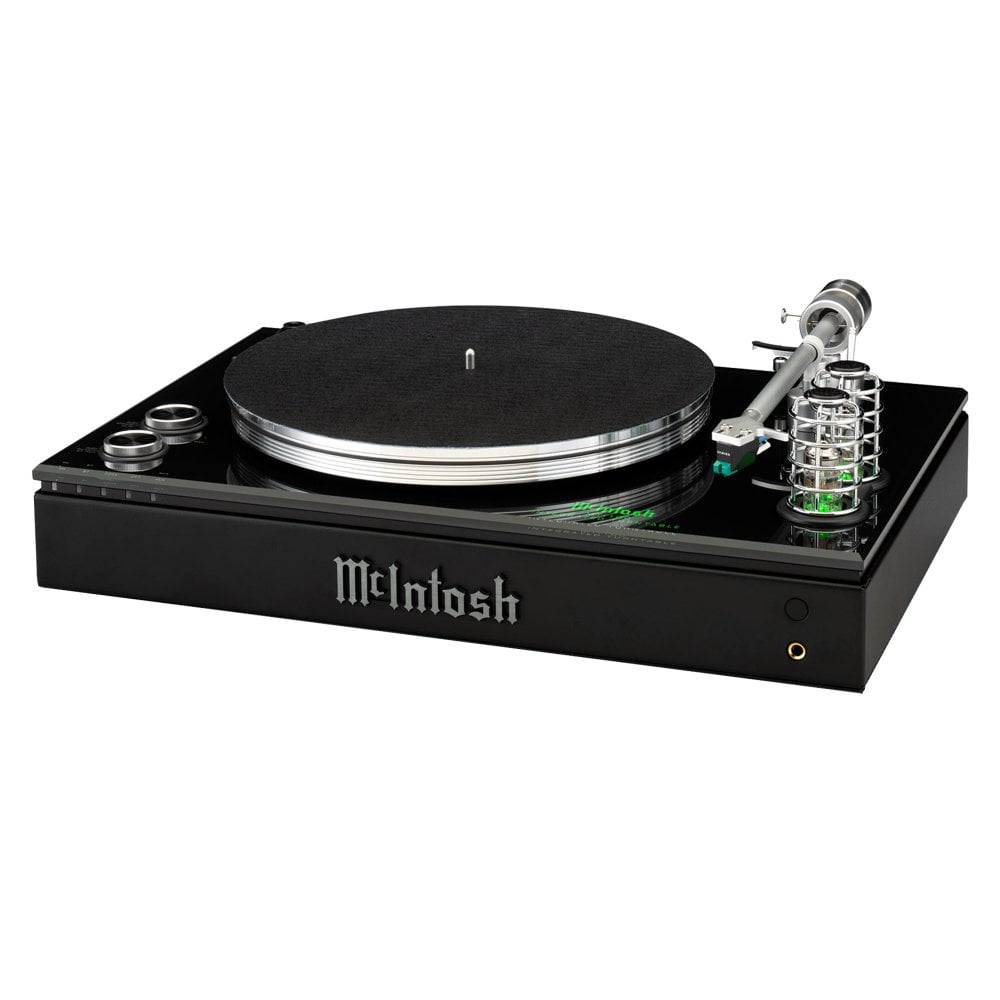

McIntosh MTI100 Integrated Turntable System

Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.

Cartridge Specifications:

• Cartridge Type: Moving Magnet
• Output Level: 4mV at 1kHz
• Load Impedance: 47k Ohms
• Frequency Response: 12Hz to 30kHz
• Channel Separation: 30dB at 1kHz
• Compliance: 12 x 10-6 cm/dyne
• Recommended Tracking Force: 2.0 g
• Channel Difference: Less than 1dB at 1kHz
• Total Mass: 6.5 g
• Stylus: Elliptical
• Cantilever Material: Aluminum

Tonearm Specifications:

• Bearing: Cardan bearing arrangement with ball bearings used for lateral and Sapphire/Tungsten for vertical bearing
• Arm Tube: Machined aluminum
• Counterweight: Concentric
• Adjustments: None

Turntable Specifications:

• Playback Speeds: 33-1/3 and 45 rpm
• Motor Type: Permanent magnet AC synchronous
• Speed Control: Manual speed change via a 2 speed pulley
• Platter: Aluminum
• Platter Bearing: Inverted hardened steel shaft and axial ball arrangement with bronze bushing
• Signal To Noise Ratio: 35dB - 40dB
• Wow & Flutter: 0.1%

Technical Specifications:

• Stereo Outputs Unbalanced: 1 (bridged to AMP IN)
• Stereo Inputs Unbalanced: 1
• Digital Coaxial Input: 1
• Digital Optical Input: 1
• Subwoofer Output: 1
• Wireless Input: High Definition Bluetooth 4.2
• Power Control Input: 0
• Power Control Output: 1
• Platter Light: N/A
• Speed Control Fine Adjustment: No
• Power Output per Channel: 50 Watts into 8 Ohms / 80 Watts into 4 Ohms
• Number of Channels: 2
• Speaker Impedance: 4 or 8 Ohms
• Rated Power Band: 20Hz to 20kHz
• Total Harmonic Distortion: Amplifier: 0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz;
• 0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz / Preamplifier: 0.2% from 20Hz to 20kHz
• Dynamic Headroom: 1.0dB (8 Ohms) / 1.3dB (4 Ohms)
• Frequency Response +0,-0.7dB: 20Hz to 20kHz
• Signal To Noise Ratio (Moving Magnet): 75dB
• Signal To Noise Ratio (High Level): 90dB
• Damping Factor: 8 Ohms: >200 / 4 Ohms: >100
• Maximum Output (Balanced / Unbalanced): 9V Unbalanced
• Dust Cover Included: No
• Unit Dimensions (W x H x D): 19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
• Unit Weight: 33.5 lbs (15.2 kg)
• Shipping Weight: 40.5 lbs (18.4 kg)
