AIM Electronics UA3 USB Interconnect

Code: UA3

From £300.00 £250.00
Secure yours with a deposit of
(FREE UK Delivery)
|
(%)

| Usually dispatched within 24 hours

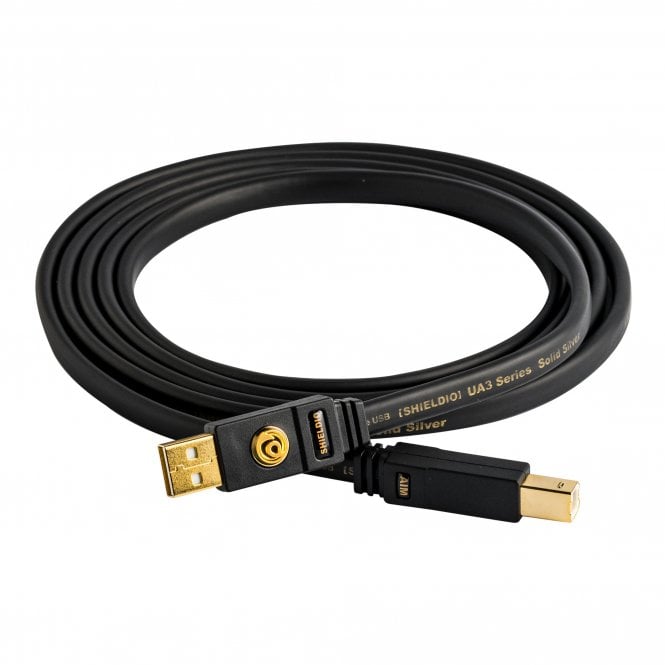

The UA3 USB Interconnect is a pure silver conductor (single wire) which is used for the signal line, and a high-dimensional transmission characteristic is thoroughly pursued by optimising the conductor size.

Overwhelming noise control performance brought about by the adoption of Asahi Kasei Corporation Palshat®MU and a design that maximises the material performance.

A Pulshat sheath, aluminum and copper braided shield are placed on each line, and noise suppression between each line is achieved by a double sheath & quad shield structure.

SP separate flat structure that allows optimal management of the distance and twist status of signal lines and power lines at all times

A shell shield made of copper + gold coating and a copper foil shield are used inside the connector to pursue a shielding effect all the way to the end of the cable.

Add To Compare

Product Specifications
Delivery

Cable Specifications:

Standard	USB 2.0 (USB High/Full speed)
Connector	USB-A to USB-B
Cable Size	8.0mm x 4.5mm(Flat Shape)
Cable Conductor	Twisted Pair x 2 (4)
Shield	Highly Efficient Aluminum Shield + High Density Copper
Wire Gauge (AWG)	AWG20 & AWG24
Connector Size	Type A: W15.50mm x H41.50mm x D7.60mm. Type B: W11.10mm x H43.93mm x D10.00mm
Connector Structure	100% Covered Shield + Copper Foil. Contacts: Gold Plated
Cable Sheath	PULSHUT MU Sheath
