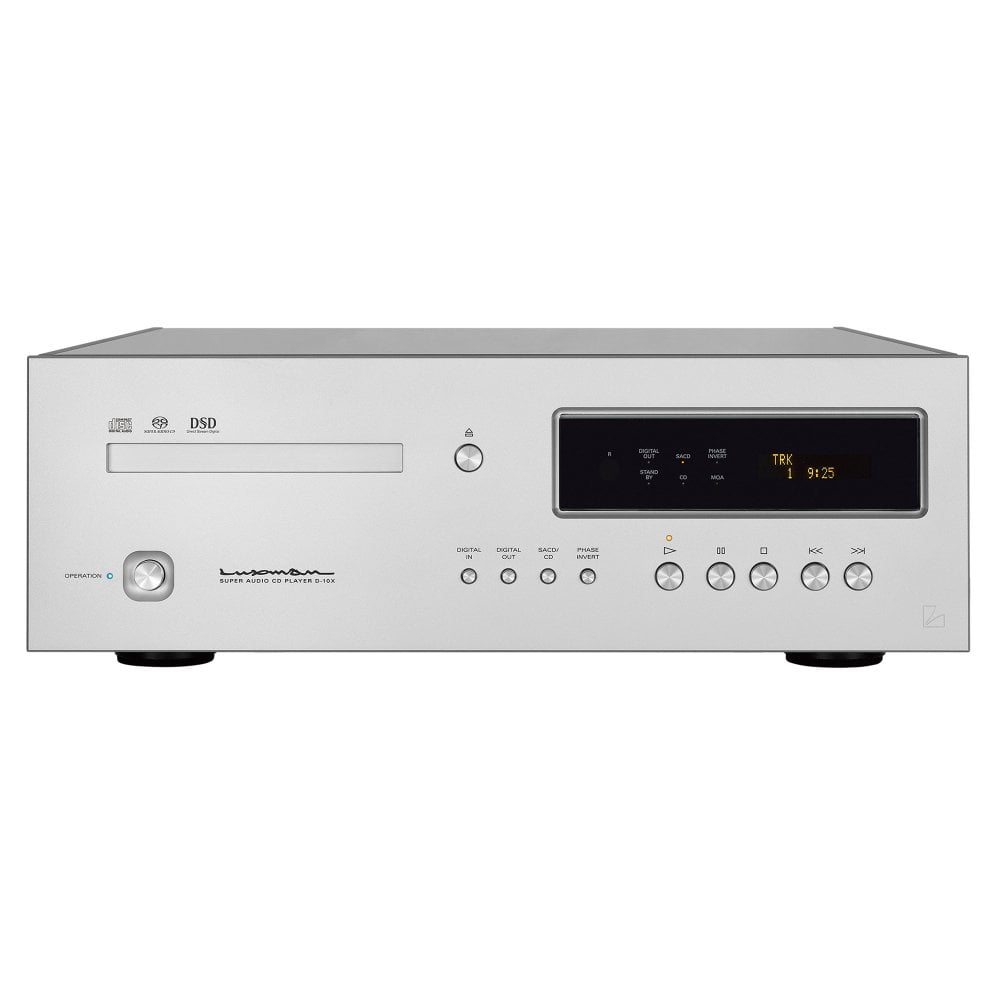

Luxman D-10X CD Player

Introducing LxDTM-i – the LUXMAN original Disc Transport Mechanism (improved).

Here is the world premiere of the ROHM Semiconductor MUS-IC™ BD34301EKV digital-to-analog converter (as of May 2020).

Introducing ODNF-u – Only Distortion Negative Feedback (ultimate) – in a fully balanced output amplifier.

Well-grounded in fundamental principles and endowed with the most advanced mechanical, digital and analog technology, the LUXMAN D-10X opens the curtain on the ultimate soundstage.

To minimize even the slightest distortions triggered by vibration and resonance, Luxman upgraded the disc drive, creating the LxDTM-i – LUXMAN original Disc Transport Mechanism (improved). They enclose the drive in 8 mm thick aluminum sides that extend to the front and rear panels, plus a 5 mm thick steel top plate. For added protection, the physical mounting system forms an integrated structure that supports the side frame. Together with an improved disc reading mechanism, the result is playback of an altogether higher order.

Technical Specifications:

• Supported discs: SACD, CD (CD-R, CD-RW, MQA-CD)
• Supported sampling frequencies: USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) / USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit) / Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
• Analog output voltage / impedance: Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω / For SACD / DSD : 1.3 V
• Frequency response: CD : 5 Hz to 20 kHz (+0, -1.0 dB) / SACD : 5 Hz to 38 kHz (+0, -3.0 dB) / USB : 5 Hz to 47 kHz (+0, -3.0 dB)
• Total harmonic distortion: CD : 0.0018 %, SACD : 0.001 %, USB : 0.0015 %
• S/N ratio (IHF-A): CD : 125 dB, SACD : 121 dB, USB : 125 dB
• D/A converter: ROHM BD34301EKV (monaural mode) x 2
• Power supply: 230 V～(50 Hz) / 115 V～ (60 Hz)
• Power consumption: 48W
• Dimensions: 440(W) x 154(H) x 418(D) mm / front side knob of 2 mm and rear side terminal of 13 mm included in depth
• Net weight: 22.4 kg
• Accessories: Remote control (RD-29), Power cable
