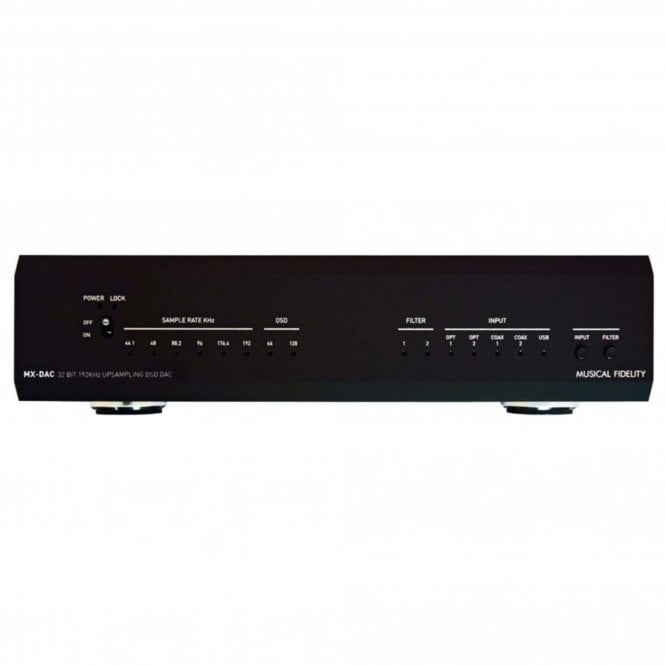

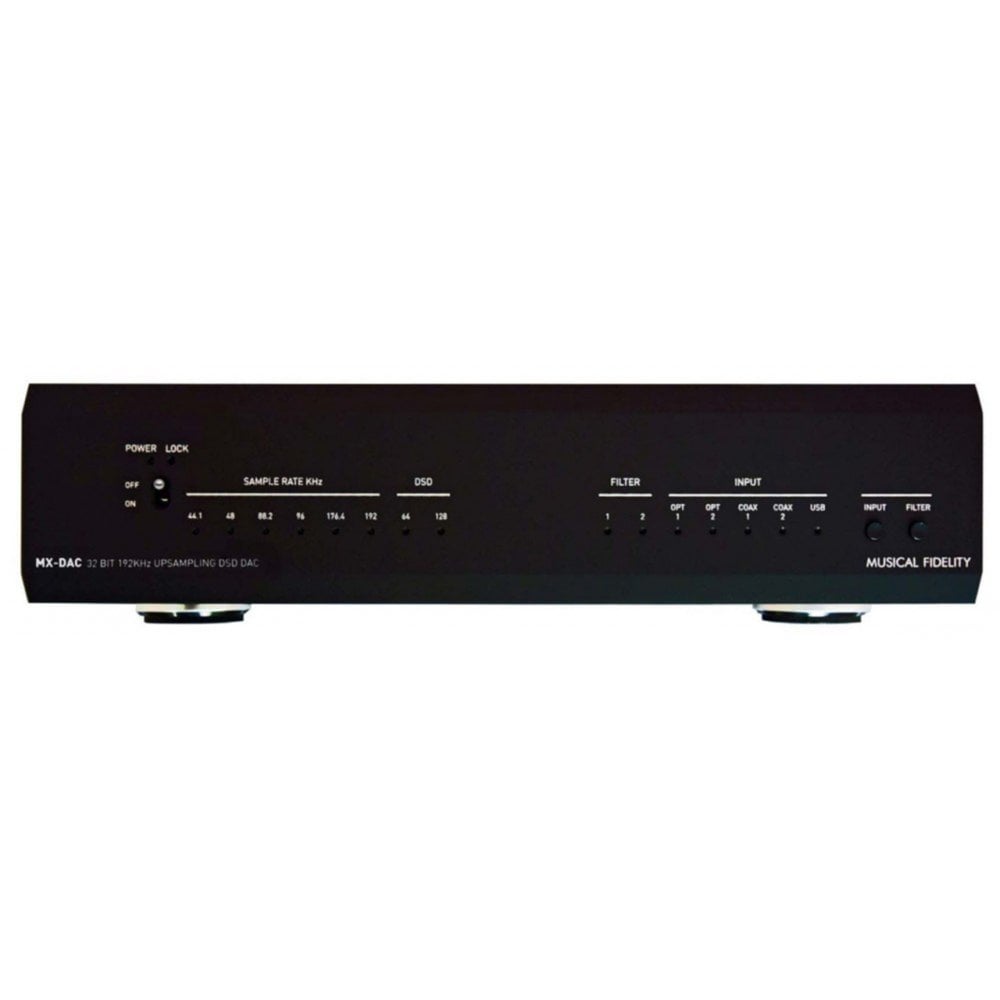

Musical Fidelity MX-DAC DAC

The MX-DAC is a tremendous performer. It has ultra low distortion, very wide bandwidth and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price. Jitter is about 12pps, s/n ratio is -116dB (‘A’ weighted), linearity is +0.2dB at -116dB, stereo separation is -104dB at 1kHz, frequency response is ruler flat and distortion is 0.00025% at 1kHz and 0.0003% at 20kHz. These technical figures are state-of-the-art and show that our implementation is almost perfect, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input.

Technical Specifications:

• Sample rate converter: SRC4392 up sampling data to 192kHz
• Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
• Output Voltage: 2 Volts RMS single-ended (RCA)
• Output Voltage: 4 Volts RMS balanced (XLR)
• PCM THD: <0.002%
• PCM THD (+ noise): <0.003%
• DSD THD: <0.003%
• DSD THD (+ noise): <0.006%
• PCM Frequency Response: –3dB, 2Hz to 90kHz
• PCM Frequency Response: –3dB, 2Hz to 40kHz
• Channel Separation: -110dB
• Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
• Optical Inputs: S/PDIF up to 24 bit / 192kHz
• Inputs: 2x RCA coaxial connector SPDIF 32-192 kbps / (16-24 bit stereo PCM) / 2x TOSLINK optical connector 32-192 kbps / (16-24 bit stereo PCM) / 1x USB type ‘B’ connector / Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128 / (Determined by source file/computer settings)
• Outputs: 1x line level RCA (single-ended) / 1x XLR Male sockets (balanced) to EIA RS-297-A
• Dimensions (W x H x D): 220 x 53 x 215mm
• Weight: 1.9kg (unpacked)
• Power Consumption: <0.25 Watts standby, <1 Watt max
• Accessories: 1x 5v / 2A DC power supply (90-250VAC universal worldwide supply) / Windows driver CD / User Manual
