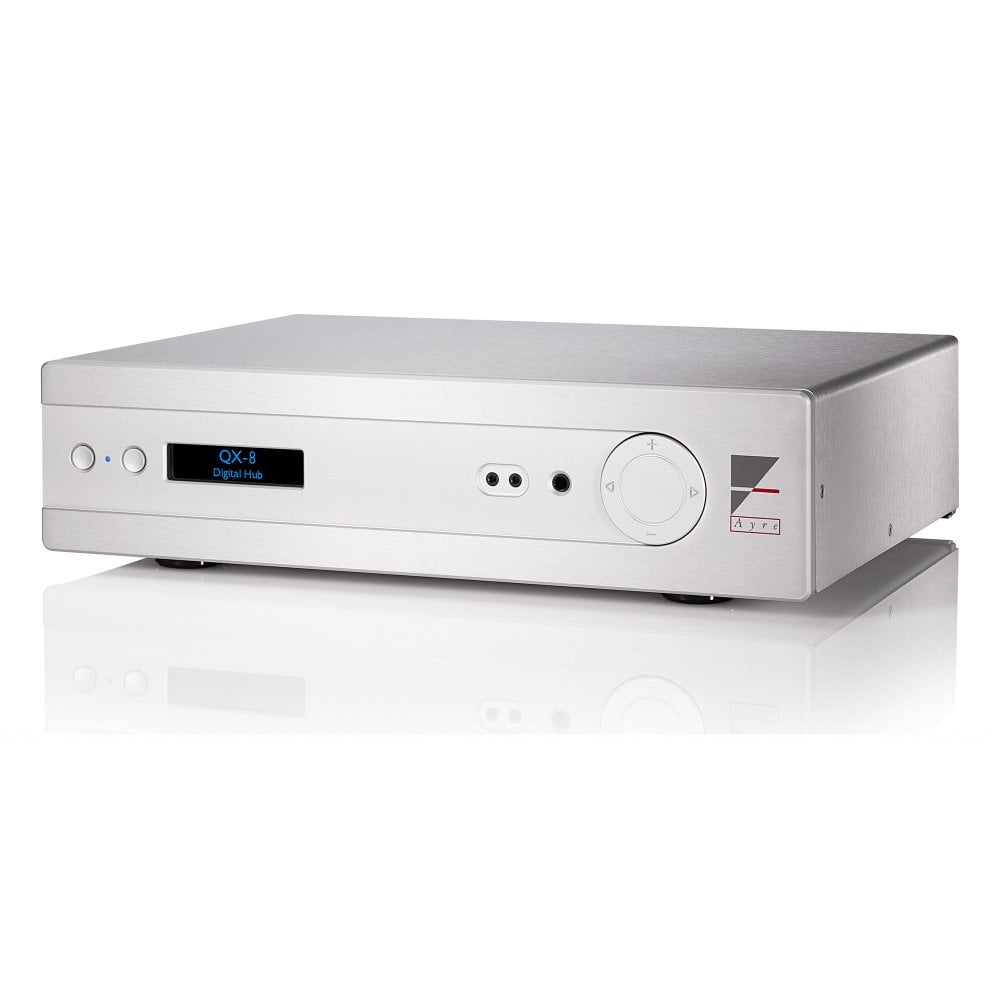

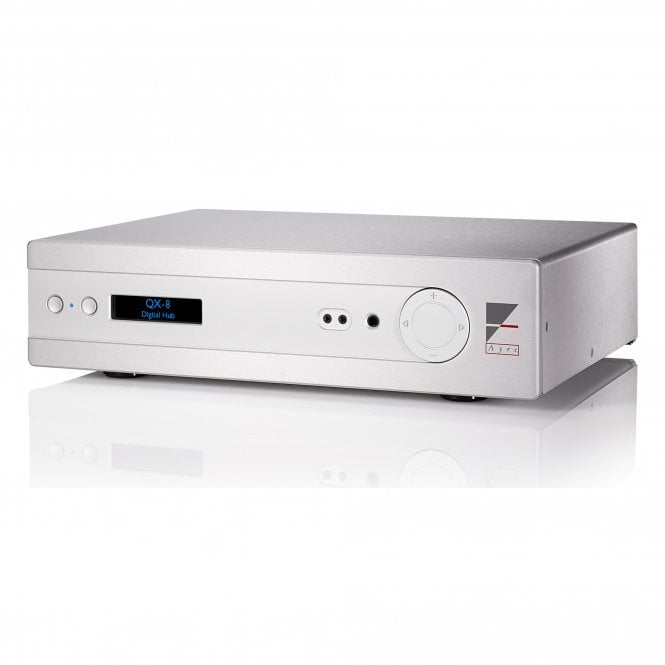

Ayre QX-8 Digital Hub/DAC/Headphone Amplifier

The QX-8’s modularity makes it amazingly versatile. Featuring up to eight digital inputs (Ethernet, USB, AES/EBU, S/PDIF (2), and Toslink (3) ) it’s prepared to be the digital hub for most any system. With the Ethernet module installed, it is Roon-ready and pre-configured to stream Spotify, Qobuz, and Tidal. The QX-8 will integrate into virtually any home system today and is designed to be upgradeable for inevitable future technologies.

Key Features:

• Zero-feedback, fully-balanced discrete circuitry
• Ayre’s Asynchronous S/PDIF input.
• ESS ES9038Q2M DAC chip
• Ayre custom digital clock
• Ayre’s Minimum Phase digital filter
• Single-pass 16x oversampling
• Ayre’s Diamond output stage
• Ayre’s exclusive Equilock gain stage
• Linear analog power supply
• High-speed circuit board material
• Up to eight digital inputs:
• Ethernet, Asynchronous USB,
• AES/EBU, S/PDIF (2), Optical (3)
• AyreLink communication system

The QX-8 also allows you to immerse yourself in music with your favorite headphones. Taking full advantage of the robust Ayre analog linear power supply, both balanced and unbalanced front panel connectors–driven by Ayre’s exclusive Diamond amplifier circuit–will effortlessly drive the most demanding headphones, allowing music to flow effortlessly into your life. The QX-8 delivers Ayre’s latest innovations in a single chassis, giving you authentic music, at an unexpected price.

Technical Specifications:

• USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
• PCM: 16, 20, 24 bits
• DSD64 and DSD128 (as DoP)
• Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• PCM: 16, 20, 24 bits
• DSD64 (as DoP)
• Network: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• PCM: 16, 20, 24 bits
• DSD64 (as DoP)
• Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended
• Headphone Output: 9.0 Vrms balanced, 4.5 Vrms single-ended
• XLR Input Polarity: Pin 1 = Ground / Pin 2 = Non-inverting (Positive) / Pin 3 = Inverting (Negative)
• Power Consumption: 60 watts in operating mode
• Dimensions: 17.25″ W x 13.00″ D x 4.5″ H / (44cm x 33cm x 11.5cm)
• Weight: 12.5 pounds (5.7 kg)
