PMC twenty5i Active Upgrade Kit

Code: 25i-activekit
  • £1,975.00
  • (FREE UK Delivery)
Item out of Stock   |   Usually dispatched within 24 hours
Loading...

Transform your passive twenty5 and twenty5i loudspeakers into active ones effortlessly. If you already own two-way twenty5 or twenty5i speakers, namely models 21, 22, 23, or 24, you can now enjoy the added advantages of improved resolution, control, and transparency by installing an Active upgrade pack.

The newest active crossover and matched amplification for the speakers' treble and mid/bass sections deliver 100W to each driver, resulting in greater detail, effortless power, crisp transients, and wider-ranging dynamics. An active loudspeaker system also enables a more minimal hi-fi setup without requiring separate power amplification.

You can easily connect the speaker using standard RCA interconnects or balanced XLRs to a broad range of one box streamers, players, or preamps, achieving a more compact and elegant system that's capable of even higher quality.

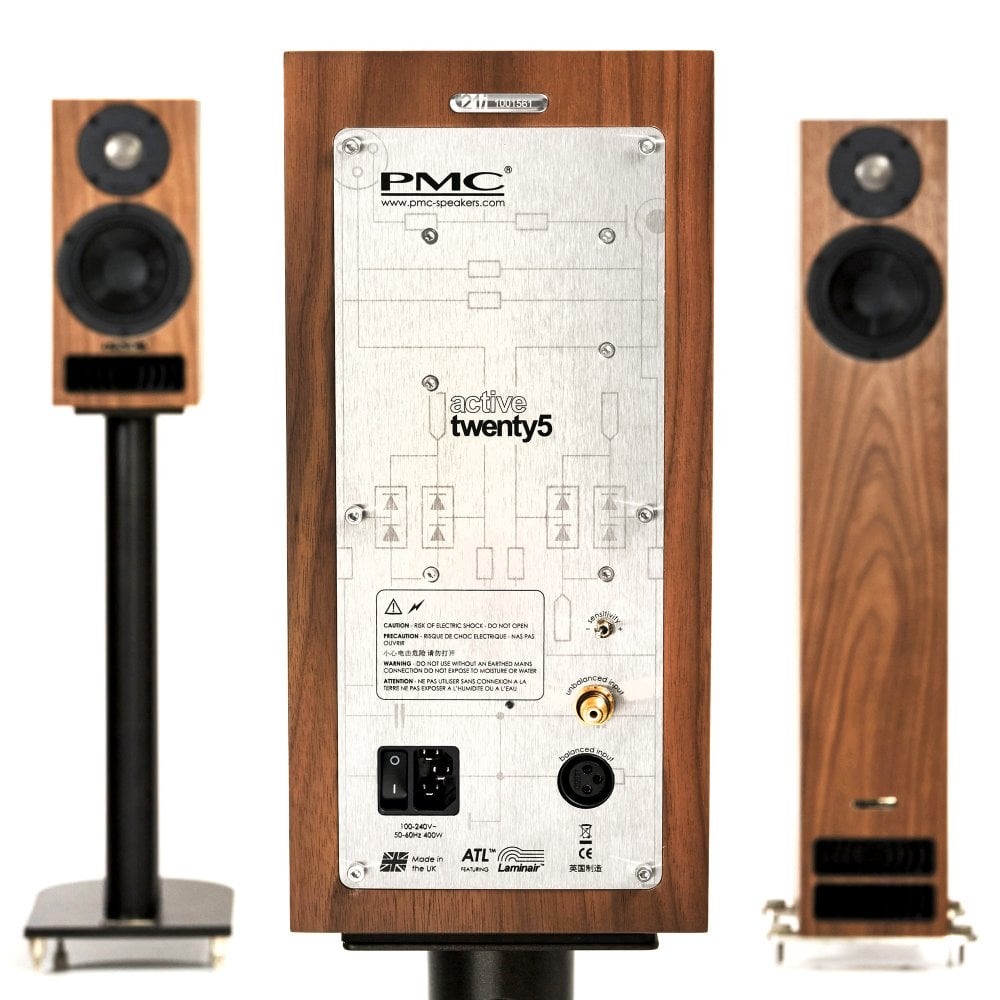

The Active twenty5 upgrade pack is a module that can be easily installed, simply by replacing the backplate of your speaker with a complete input/crossover/amplification unit that connects to the speaker's drivers via a single multipin plug.

The installation process is straightforward, and each module is designed to take no more than five minutes to install. Alternatively, you can ask your PMC retailer to do it for you, and the Active twenty5 module has a convenient speaker selector: you can select the model you're upgrading by plugging in the supplied jumper bar.

Our upgrade module has a meticulously designed analogue crossover with unique settings for each of the four speaker models, perfectly tuned to ensure ideal driver integration and an exceptionally pure, natural, and powerful sound. Once you've connected your signal cable and mains lead to each speaker, you're ready to enjoy the benefits of an active loudspeaker system.

Active amplification of a loudspeaker allows for superior control of the drive units, helping to dampen unwanted resonances, improving transient performance, reducing coloration, and increasing resolution and detail.

Speaker Specifications:
Treble Driver HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Bass Driver 46Hz – 25kHz
Sensitivity 1Vrms = 96.5dB SPL @ 1m (low setting) / 106.5dB SPL @ 1m (high setting)
Nominal Impedence >14kΩ
Frequency Response (+/-3dB) 46Hz – 25kHz
Crossover Frequency 1.65kHz
Inputs Balanced analogue XLR and unbalanced RCA
Amplifier output power (per speaker) HF 100Wrms + LF 100Wrms
Power Input 90-260V, IEC C14 Connector
