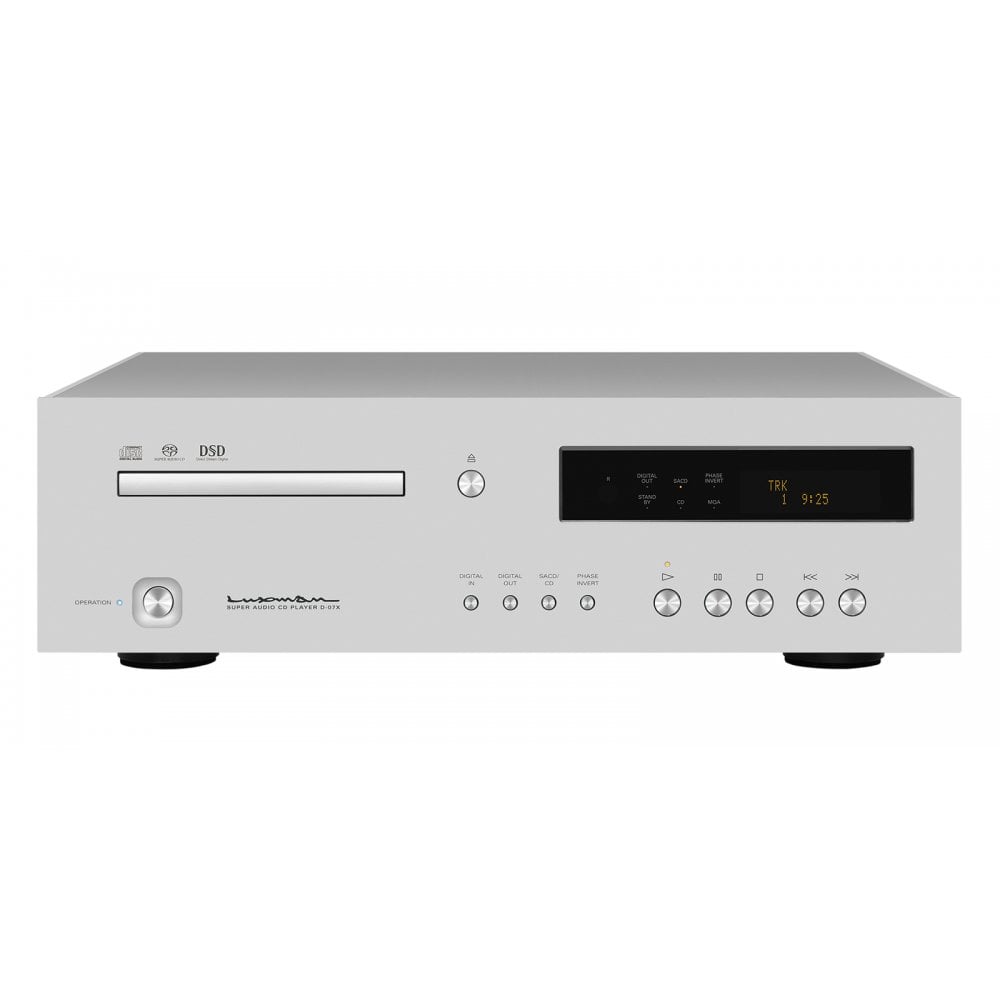

Luxman D-07X SACD Player

Code: D-07X
  • £10,000.00
  • (FREE UK Delivery)
Item out of Stock   |   Usually dispatched within 24 hours
Loading...

The world of audio formats is currently going through a transformational phase. With the support of digital circuitry that can handle high resolution file formats and the latest DAC environment, there has been a surge of excitement for CDs and SACDs, which still hold an important position in the audio media industry. The D-07X, inspired by the luxurious styling and outstanding performance of our flagship model - the D-10X, is a digital media player that delivers unparalleled performance. It has the ability to convey the true ambience and feeling of recorded music across a wide range of media, providing an exceptional listening experience.

Key Features:

  • ROHM BD34301EKV DAC
  • LxDTM-I Transport (CD/SACD - switchable)
  • USB, coaxial and optical input terminals that support PCM formats up to 192kHz/24bit
  • Balanced Output via Neutrik shielded XLRs and Unbalanced via RCA
  • Digital Output via Optical and Coaxial

Advanced DAC circuitry, reproducing digital media with excellent sound quality

The digital circuitry of our device processes various digital media from CDs and SACDs to the latest high-resolution audio files with exceptional quality. This is all thanks to the high-end DAC chips manufactured by Rohm Co., Ltd. in dual monaural configuration, following the standards set by our D-10X flagship model. You can connect the device to your PC, Mac, NAS for audio, etc., over a USB input and enjoy a wide range of format encoding up to PCM768kHz/32 bit and DSD22.4MHz. Our dedicated driver software allows you to select Bulk Pet transfer, which equalises transmission load. The clocking system is designed to support accurate digital signal processing and is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to a minimum. You can also enjoy the popular high-quality format MQA (MQA-CD/MQA file) over streaming USB, COAX, and optical. Finally, there is a built-in, 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.

Highly robust LxDTM-i drive mechanism

The D-07X features a left-side mechanical layout with an asymmetric configuration for the shortest and ideal audio signal path. The disc drive section supports CD and SACD playback with our original LxDTM mechanism for robust and durable performance.

Newly developed discrete buffer circuitry

The D-07X has a newly developed I/V conversion system that feeds four discrete, perfectly matched amplifier modules, supported by high-quality buffer circuitry. This provides a powerful drive for any integrated or control amplifier as the next stage component.

Abundant input / output options

The analog outputs are equipped with both 32mm pitch, gold-plated RCA terminals and newly adopted, Neutrik shielded XLR terminals. Abundant digital connectivity features a USB terminal that supports PCM/DSD input, with coaxial and optical input terminals that support PCM formats up to 192kHz/24bit, and coaxial and optical output terminals.

CD Player Specifications
Supported media SACD, CD (CD-R, CD-RW, MQA-CD)
Supported sample rates (kHz) USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Outputs Balanced Output via Neutrik shielded XLRs and Unbalanced via RCA
Frequency Response CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
SNR CD : 122 dB, SACD : 125 dB, USB : 122 dB
Mains Voltage & Power Consumption Power supply 230 V~(50 Hz) / 115 V~ (60 Hz)
Power consumption 37W
Supplied Accessories Remote control (RD-29)
Power cable
Dimensions 440(W) x 132(H) x 410(D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth
Weight 17.0 kg
